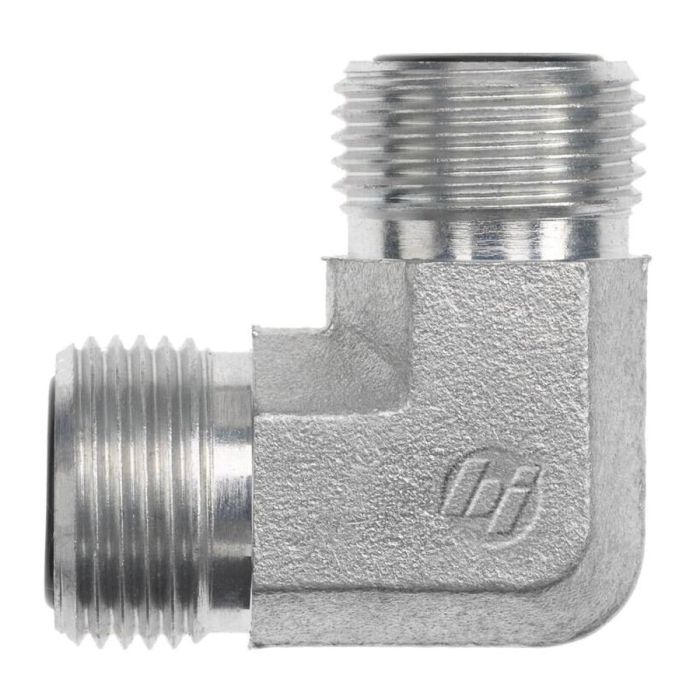

main product photo

#12 MORS X #12 MORS 90*

Ask A Question

Description & Features

This forged elbow features #12 MORS x #12 MORS connections in a 90-degree configuration. The elbow is part of the FS2500-FG series from Brennan Industries.

Thread size for both connections is 1-3/16-12 with a 0.609-inch drill size and a 3/4-inch tube OD. The #12 MORS X #12 MORS 90* has a JJ flats dimension of 1.188 inches and a length (M1 and M2) of 1.47 inches.

SKU: FS2500-12-12-FG

Supplier Part Number (MPN): FS2500-12-12-FG

Alternate Part Numbers: AFF2035T1212S, FF2500-12-12

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.609 in
a2 Drill Dimensions
0.609 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Dimension Standards
SAE J1453
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.188 in
jj Flats Dimensions
1.188 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2500-FG Series
Thread Size
1-3/16-12
Tube Outside Diameter
3/4 in

Product Questions & Answers (2)

Question by: Neil B on Feb 28, 2026, 12:19 PM
what size tubing does this elbow hook up to, the 3/4 inch stuff?
Answer by: Customer Support on Mar 2, 2026, 11:37 AM
Yeah, 3/4-inch OD tube on both ends. Both ports share the same specs, 1-3/16-12 thread with a 0.609-inch drill, so you're working with identical connections on each side of the 90.
Question by: Janet B on Mar 14, 2026, 10:18 AM
So this is a 90 degree elbow, right? Just makin' sure before I order.
Answer by: Customer Support on Mar 15, 2026, 3:31 PM
That's correct. This elbow fitting is a 90-degree configuration.
