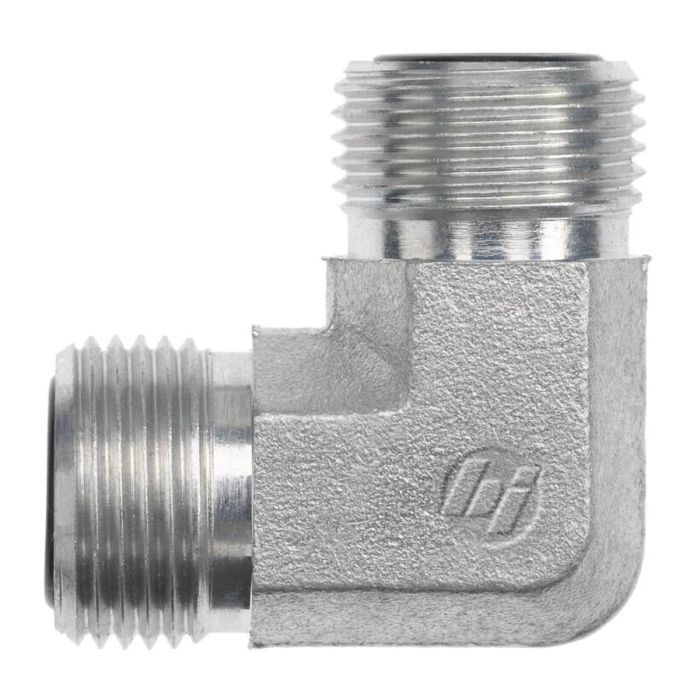

main product photo

#16 MORS X #16 MORS 90*

Ask A Question

Description & Features

This forged #16 MORS X #16 MORS 90° elbow features a Brennan A1 drill size of 0.811" with 1-7/16-12 threads, and a tube OD of 1". It also features a Brennan A2 drill size of 0.811" with 1-7/16-12 threads, and a tube OD of 1".

This FS2500-FG series elbow has a Brennan JJ flats measurement of 1.438", M1 length of 1.64", and M2 length of 1.64".

SKU: FS2500-16-16-FG

Supplier Part Number (MPN): FS2500-16-16-FG

Alternate Part Numbers: AFF2035T1616S, FF2500-16-16

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.811 in
a2 Drill Dimensions
0.811 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Dimension Standards
SAE J1453
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.438 in
jj Flats Dimensions
1.438 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2500-FG Series
Thread Size
1-7/16-12
Tube Outside Diameter
1 in

Product Questions & Answers (1)

Question by: Dale R on Mar 31, 2026, 9:23 PM
I just wanna make sure this elbow fitting will work for my setup. It's gotta handle a 1-inch OD tube. Does this one fit the bill?
Answer by: Customer Support on Apr 2, 2026, 9:06 AM
This forged elbow fitting is made to work with a 1-inch OD tube, so it should be just what you need.
