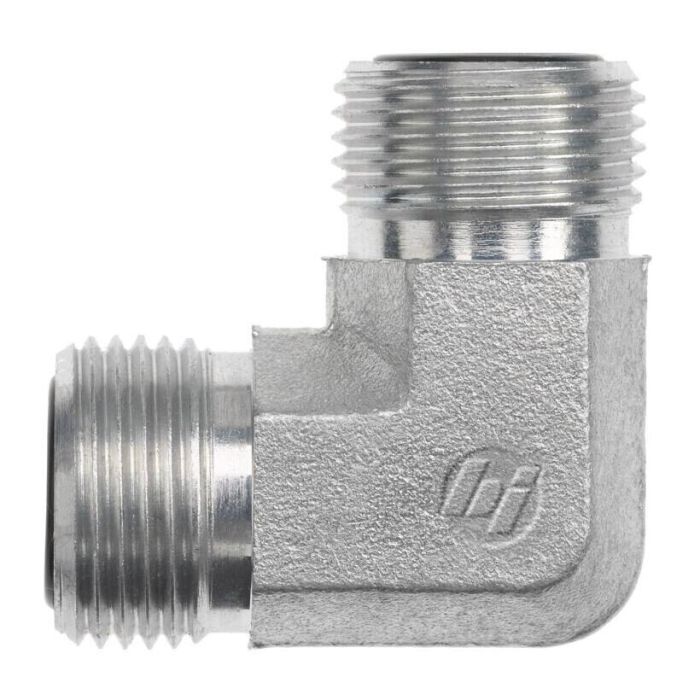

20MFS-20MFS 90 DEG ELBOW

Description & Features

This forged 90-degree elbow features 1-1/4 inch outer diameter tube ends, designed for robust hydraulic applications. The 20MFS-20MFS 90 DEG ELBOW has a Brennan A1 and A2 drill size of 1.024 inches, with corresponding thread sizes of 1-11/16-12.

The elbow's design incorporates a Brennan JJ flat size of 1.625 inches. The M1 and M2 lengths are both 1.76 inches, and it belongs to the FS2500-FG series, ensuring reliability and performance in demanding conditions.

SKU: FS2500-20-20-FG

Supplier Part Number (MPN): FS2500-20-20-FG

Alternate Part Numbers: AFF2035T2020S, FF2500-20-20, FS2500-20-20

Specifications

Supplier Part Number FS2500-20-20-FG	Product Weight 0.00 lbs

Product Questions & Answers (1)

Question by: Judy W on Nov 1, 2025, 7:38 AM

Reckon this elbow fitting will hold up okay in a hydraulic system running around 2500 psi?

Answer by: Customer Support on Nov 3, 2025, 6:49 AM

The FS2500-FG series is indeed made for demanding conditions, so it should handle that pressure without issue.
