04MFS-04MP 90 ELBOW

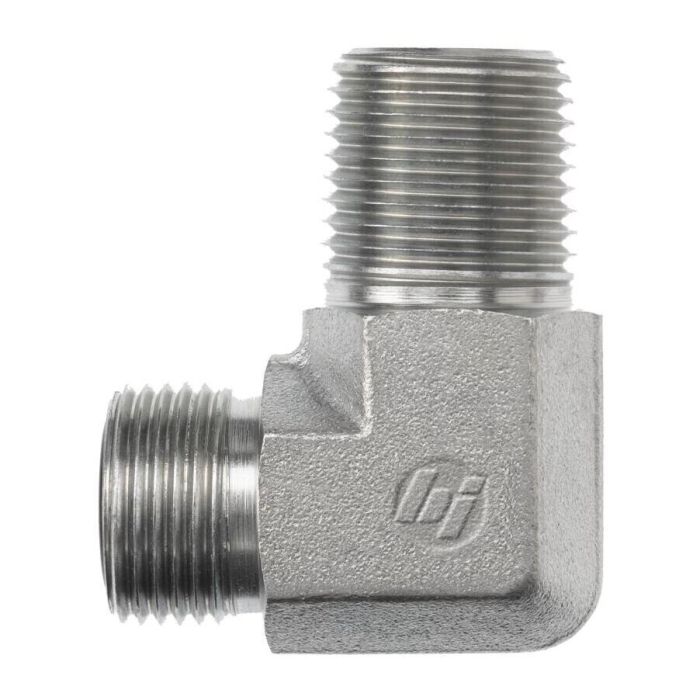

A forged 90-degree elbow designed for use in hydraulic line assemblies, the 04MFS-04MP 90 Elbow connects a 9/16-18 male flareless seat (MFS) port to a 1/4-18 male pipe (MP) thread. The forged construction of the Brennan Industries FS2501-FG series provides solid, consistent geometry suited to demanding hydraulic environments.

With a 1/4 in. tube OD and hex flats measuring 0.562 in., the fitting is compact and wrench-accessible in tight installations. The 90-degree angle allows directional changes in hydraulic lines where straight fittings cannot accommodate routing constraints. A-side and B-side drill dimensions of 0.172 in. and 0.281 in. respectively, combined with body lengths of 0.85 in. and 1.12 in., reflect the fitting's compact envelope within the FS2501-FG product series.

SKU: FS2501-04-04-FG

Supplier Part Number (MPN): FS2501-04-04-FG

Alternate Part Numbers: FS2501-04-04
