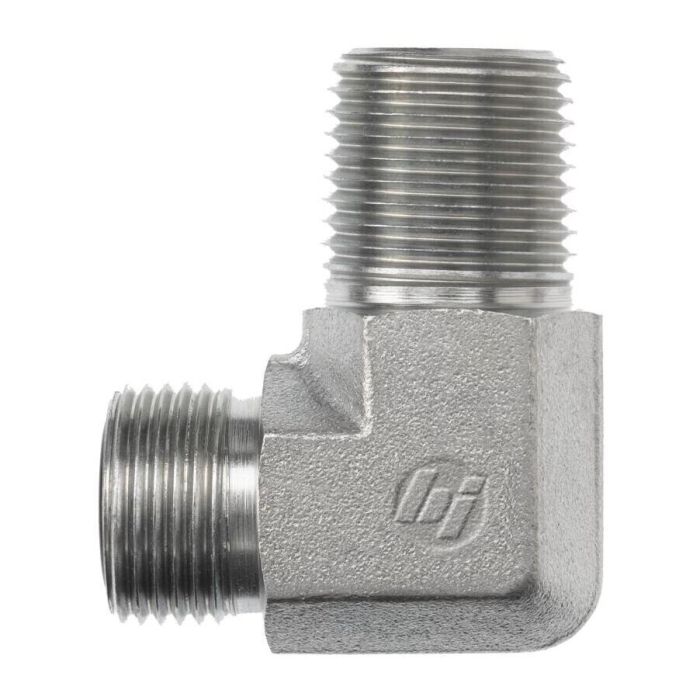

06MFS-04MP 90 ELBOW

Forged construction and a 90-degree elbow configuration make the 06MFS-04MP 90 Elbow well suited for directional changes in hydraulic line routing where space and integrity both matter. This fitting connects a 3/8 in. male flareless seat (11/16-16 thread) to a 1/4 in. male pipe thread (1/4-18), bridging two common thread types in a compact, angled body.

Manufactured by Brennan Industries under the FS2501-FG series, the forged body provides consistent wall strength throughout the fitting. With an overall length of 0.98 in. on the A side and 1.09 in. on the B side, and a 0.750 in. wrench flat, it fits standard tooling for installation in tight assemblies. Bore diameters of 0.264 in. and 0.281 in. align with the respective port sizes.

SKU: FS2501-06-04-FG

Supplier Part Number (MPN): FS2501-06-04-FG

Alternate Part Numbers: AFF2032T0604S, FF2501-06-04
