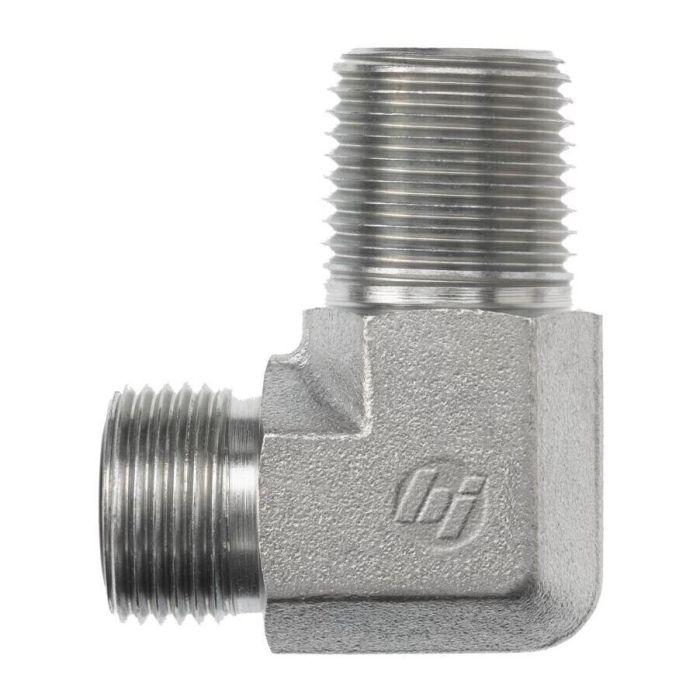

06MFS-06MP 90 ELBOW

Description & Features

Crafted with precision by Brennan Industries, the 06MFS-06MP 90 ELBOW is a robust hydraulic fitting designed for seamless integration in industrial systems. This forged elbow adapter features a 90-degree angle, facilitating the redirection of flow in hydraulic circuits with minimal pressure loss. The part is engineered with a Brennan A Thread of 11/16-16 and a B Thread of 3/8-18, ensuring compatibility with various hydraulic components.

The Brennan FS2501-FG series is known for its durability and reliability in demanding environments. The compact design, with a Brennan M Length of 0.980 inches and a N Length of 1.220 inches, makes it ideal for applications requiring efficient use of space. The 0.750-inch Jj Flats provide ease of installation and maintenance, while the 3/8-inch Tube OD offers versatility in system integration.

SKU: FS2501-06-06-FG

Supplier Part Number (MPN): FS2501-06-06-FG

Alternate Part Numbers: AFF2032T0606S, FF2501-06-06

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS2501-06-06-FG	Product Weight 0.19 lbs

Product Questions & Answers (1)

Question by: Debbie R on Dec 9, 2025, 2:58 PM

Will this elbow fitting work with standard hydraulic setups, or is it made for a specific kinda system?

Answer by: Customer Support on Dec 11, 2025, 6:52 AM

This 90-degree elbow is designed to integrate smoothly into various industrial hydraulic systems, offering a practical solution for redirecting flow with minimal pressure drop. Its compatibility is enhanced by the inclusion of both Brennan A and B threads (11/16-16 and 3/8-18, respectively).
