08MFS-06MP 90 ELBOW

Description & Features

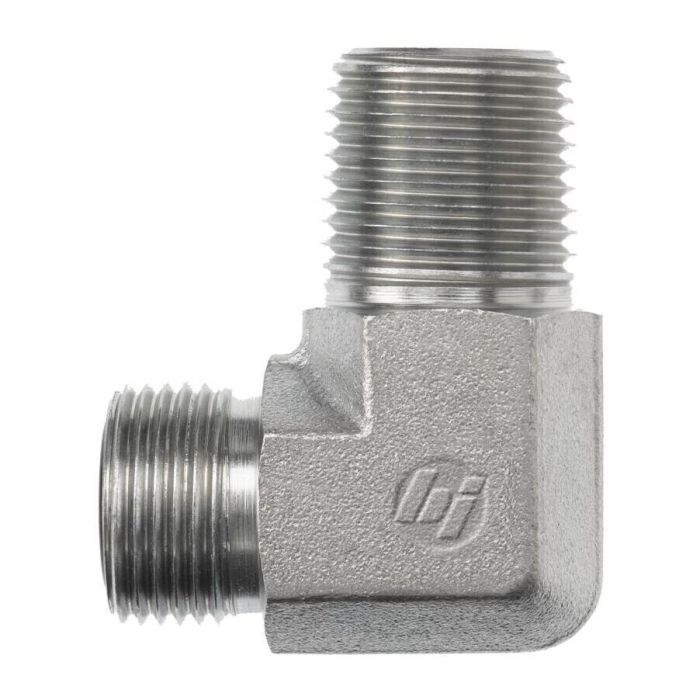

The 08MFS-06MP 90 Elbow is a robust and reliable component designed for hydraulic systems, ensuring seamless directional flow changes. Crafted with precision, this forged elbow features a 90-degree bend, optimizing space in compact installations. It includes Brennan A Thread size 13/16-16 and Brennan B Thread size 3/8-18, making it compatible with a variety of connectors. With a tube outer diameter of 1/2 inch, it facilitates efficient fluid transfer.

Manufactured by Brennan Industries, this elbow is part of the FS2501-FG series, known for its durability and performance in demanding environments. The component dimensions include a Brennan Jj Flats size of 0.750 inches, Brennan A Drill of 0.378 inches, and Brennan B Drill of 0.406 inches, ensuring a secure and precise fit. The overall lengths, Brennan M Lgth and Brennan N Lgth, are 1.10 inches and 1.22 inches respectively, providing structural stability within the system.

SKU: FS2501-08-06-FG

Supplier Part Number (MPN): FS2501-08-06-FG

Alternate Part Numbers: AFF2032T0806S, FF2501-08-06

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS2501-08-06-FG	Product Weight 0.19 lbs

Product Questions & Answers (3)

Question by: Frank G on Jul 27, 2025, 4:11 PM

So this is a 90 degree elbow, right? Just want to make sure before I order.

Answer by: Customer Support on Jul 29, 2025, 7:49 AM

That's correct, this is a 90-degree forged elbow designed to provide a seamless change in direction for your hydraulic system.

Question by: Lynn M on Sep 4, 2025, 11:33 AM

trying to swap out an elbow on my line, what threads are on each end of this 08MFS-06MP?

Answer by: Customer Support on Sep 5, 2025, 6:42 PM

On the A end it has a 13/16-16 thread, and on the B end it has a 3/8-18 thread.

Question by: Connie H on Nov 25, 2025, 12:15 PM

what thread sizes are on this elbow? got a 1/2 inch tube line i'm trying to reroute and need to make sure the fittings line up before i order

Answer by: Customer Support on Nov 27, 2025, 11:32 AM

The A-side runs a 13/16-16 thread and the B-side is 3/8-18. Tube outer diameter on this one is 1/2 inch, so if your line matches up with those specs you should be in good shape.
