10MFS-12MP 90 ELBOW

Description & Features

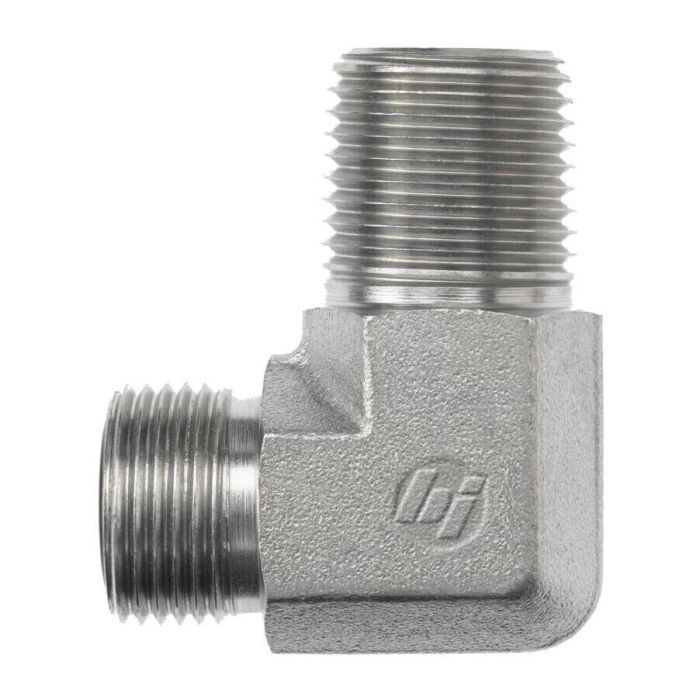

The 10MFS-12MP 90 ELBOW features a 5/8 inch tube OD and is part of the FS2501-FG series.

This forged elbow fitting has a Brennan A drill size of 0.484 with a 1-14 thread, and a Brennan B drill size of 0.719 with a 3/4-14 thread. It measures 1.31 inches in Brennan M length and 1.59 inches in Brennan N length, with jj flats at 1.062 inches.

SKU: FS2501-10-12-FG

Supplier Part Number (MPN): FS2501-10-12-FG

Alternate Part Numbers: AFF2032T1012S, FF2501-10-12

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS2501-10-12-FG	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Donna J on Sep 19, 2025, 5:21 PM

What size drill bit do I need for the A port on this elbow?

Answer by: Customer Support on Sep 21, 2025, 6:47 AM

For the Brennan A port, you'll want to use a 0.484 inch drill bit. The thread size for that side is 1-14.
