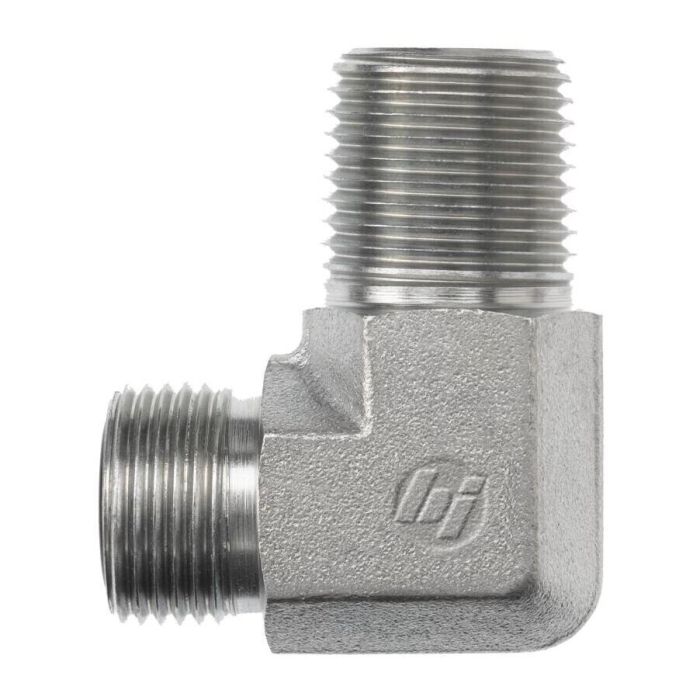

16MFS-16MP 90 ELBOW

Description & Features

Forged construction and a 90-degree bend make this male face seal to male pipe fitting well suited for directional changes in high-pressure hydraulic lines. The 16MFS-16MP 90 Elbow connects a 1-7/16-12 male face seal port to a 1-11½ male pipe thread, accommodating 1-inch OD tubing on the face seal side. Manufactured by Brennan Industries as part of the FS2501-FG series, it is built to handle demanding fluid power applications where reliable sealing at both ends is essential.

The fitting measures 1.64 inches along the M length and 1.97 inches along the N length, with 1.438-inch flats for wrench engagement. Bore dimensions of 0.811 inches on the face seal side and 0.938 inches on the pipe side support consistent flow through the elbow. Forged construction provides the structural integrity expected in industrial hydraulic assemblies.

SKU: FS2501-16-16-FG

Supplier Part Number (MPN): FS2501-16-16-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS2501-16-16-FG	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Terry B on Apr 28, 2025, 4:54 PM

Just want to make sure, this elbow fitting will connect to a 1-inch OD tube on the face seal side, right?

Answer by: Customer Support on Apr 30, 2025, 6:34 AM

that's right. This 90-degree elbow is designed to connect a 1-inch OD tube to a male face seal port.
