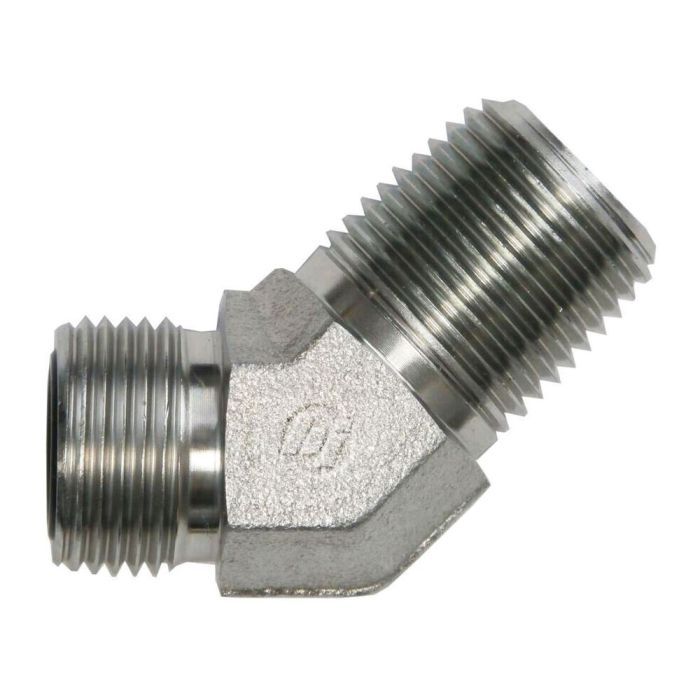

main product photo

04MFS-02MP 45 DEG ELBOW

Ask A Question

Description & Features

The 04MFS-02MP 45 DEG ELBOW is a precision-engineered hydraulic fitting designed to facilitate smooth directional changes in fluid systems. Constructed from high-strength materials, this forged elbow ensures durability and reliable performance in demanding industrial applications. Its compact design includes a 45-degree angle, making it ideal for installations where space is a constraint.

Featuring a 9/16-18 thread on the A side and a 1/8-27 thread on the B side, the elbow accommodates a variety of connection requirements. With a tube outer diameter of 1/4 inch, it seamlessly integrates into existing setups. The product belongs to the FS2503-FG series, known for its robust construction and high compatibility with various hydraulic systems.

SKU: FS2503-04-02-FG

Supplier Part Number (MPN): FS2503-04-02-FG

Alternate Part Numbers: AFF2093T0402S, FF2503-04-02

Specifications

a Drill Dimensions
0.172 in
b Drill Dimensions
0.188 in
Connection Size 1
1/4 in
Connection Size 2
1/8 in
Connection Type
Male ORFS, MNPT
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J1453, SAE J476
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
0.563 in
jj Flat Dimensions
0.562 in
jj Flats Dimensions
0.562 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2503-FG Series
Thread Size
9/16-18 x 1/8-27
Tube OD
1/4 in
Tube Outside Diameter
1/4 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Dale B on Sep 10, 2025, 9:34 AM
Reckon this'll hold up okay in a hydraulic system that runs pretty hot, or is it more for standard temps?
Answer by: Customer Support on Sep 11, 2025, 10:46 AM
Designed for durability in demanding industrial applications, this elbow is constructed from high-strength materials to ensure reliable performance. While specific temperature ratings aren't listed, its robust build suggests it can handle typical hydraulic system heat.
