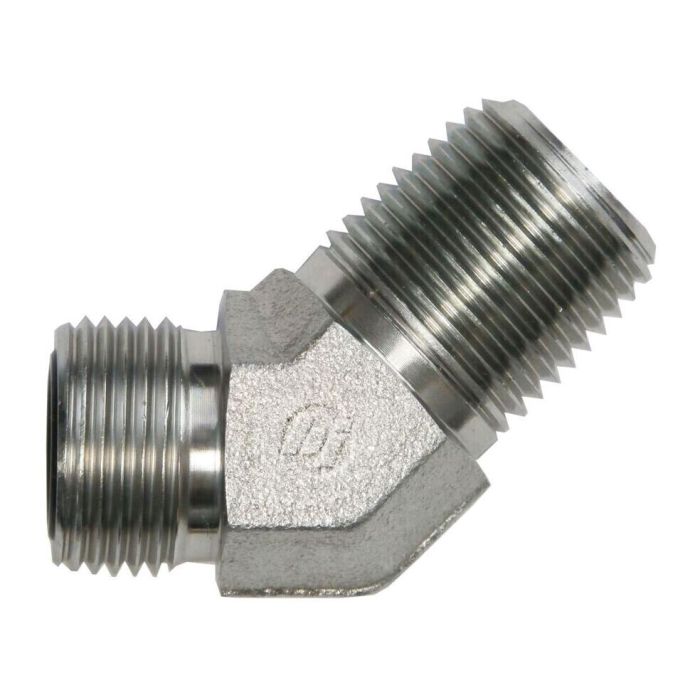

06MFS-06MP 45 DEG ELBOW

Description & Features

This forged elbow features a 45-degree angle, making it ideal for hydraulic systems requiring angled connections. The 06MFS-06MP 45 DEG ELBOW offers robust performance and precise alignment.

This elbow is built with a Brennan A Drill size of 0.264 and A Thread size of 11/16-16. It also includes a Brennan B Drill size of 0.406 and B Thread size of 3/8-18. The Jj Flats measure 0.750, with an M Lgth of 0.740 and an N Lgth of 0.950. The tube OD is 3/8.

SKU: FS2503-06-06-FG

Supplier Part Number (MPN): FS2503-06-06-FG

Alternate Part Numbers: AFF2093T0606S, FF2503-06-06

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS2503-06-06-FG

Product Questions & Answers (3)

Question by: Darryl E on Aug 12, 2025, 8:57 PM

trying to swap out an old 45 elbow, what thread sizes are on each end of this 06MFS-06MP?

Answer by: Customer Support on Aug 14, 2025, 1:31 PM

On the A end it has an 11/16-16 thread with a 0.264 drill size, and on the B end it has a 3/8-18 thread with a 0.406 drill size.

Question by: Melvin A on Jun 17, 2025, 2:41 PM

Will this elbow handle regular hydraulic pressures without any problem?

Answer by: Customer Support on Jun 19, 2025, 6:59 AM

This forged elbow is designed for hydraulic systems, offering robust performance under normal operating pressures.

Question by: Bonnie M on Aug 20, 2025, 9:38 PM

what size tube does this elbow hook up to and is the thread on the male pip side a standard size

Answer by: Customer Support on Aug 22, 2025, 9:05 PM

Tube OD on this fitting is 3/8 inch. The male pipe side runs a 3/8-18 thread, which is a standard NPT size you'll find on a lot of common hydraulic components. The other end carries an 11/16-16 thread for the flare seat connection, so double-check both ends match up before ordering.
