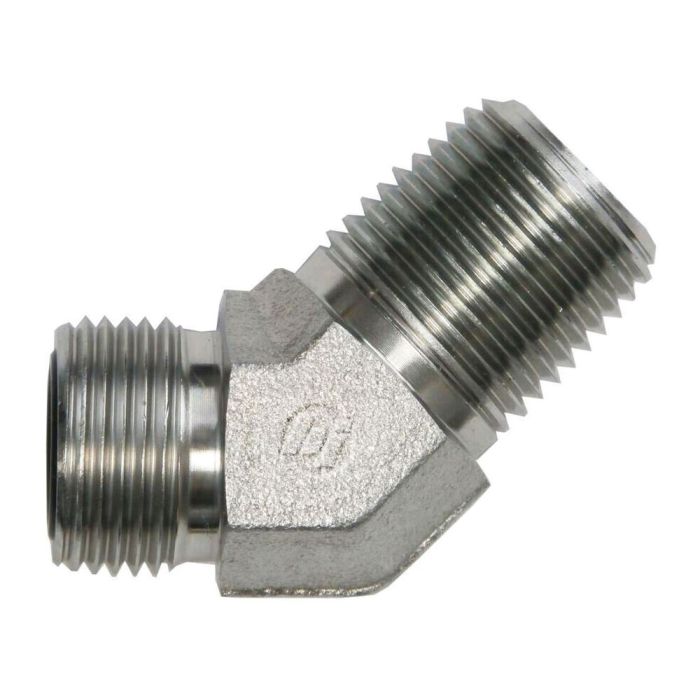

12MFS-12MP 45 DEG ELBOW

Ask A Question

Description & Features

The 12MFS-12MP 45 DEG ELBOW offered by Brennan Industries Inc is crafted with precision for industrial applications. This elbow fitting is designed to connect tubes securely at a 45-degree angle enhancing alignment in complex configurations. It features an A Drill of 0.609 and B Drill of 0.719 ensuring compatibility with various tube sizes.

The component's A Thread is 1-3/16-12 and B Thread is 3/4-14 providing robust thread engagement for reliable performance.

With Jj Flats measuring 1.188 and overall lengths of M at 1.020 and N at 1.180 it accommodates specific spatial requirements. Constructed from forged materials this elbow fitting ensures durability and long-term use under demanding conditions.

The tube outer diameter of 3/4 enhances its scope of applicability in various industrial setups.

Brand: Brennan Industries Inc

Series: FS2503-FG

Supplier Part Number: FS2503-12-12-FG

Specifications

Brand
BRENNAN
a Drill Dimensions
0.609 in
b Drill Dimensions
0.719 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Male ORFS, MNPT
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J1453, SAE J476
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1.188 in
jj Flat Dimensions
1.188 in
jj Flats Dimensions
1.188 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
4000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2503-FG Series
Thread Size
1-3/16-12 x 3/4-14
Tube Outside Diameter
3/4 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Norm T on May 2, 2025, 7:46 AM
Does the 3/4 tube OD on this fitting match up with standard 3/4 hydraulic line, or is that a different measurement than what I'm used to working with?
Answer by: Customer Support on May 3, 2025, 6:55 PM
The tube outer diameter on this elbow is 3/4 inch, so if your hydraulic line has a 3/4 inch OD, you're working with the right fitting. The male flareless side uses a 1-3/16-12 thread and the male pipe side runs 3/4-14, so just make sure both ends match what you've got on your system before you button it up.
