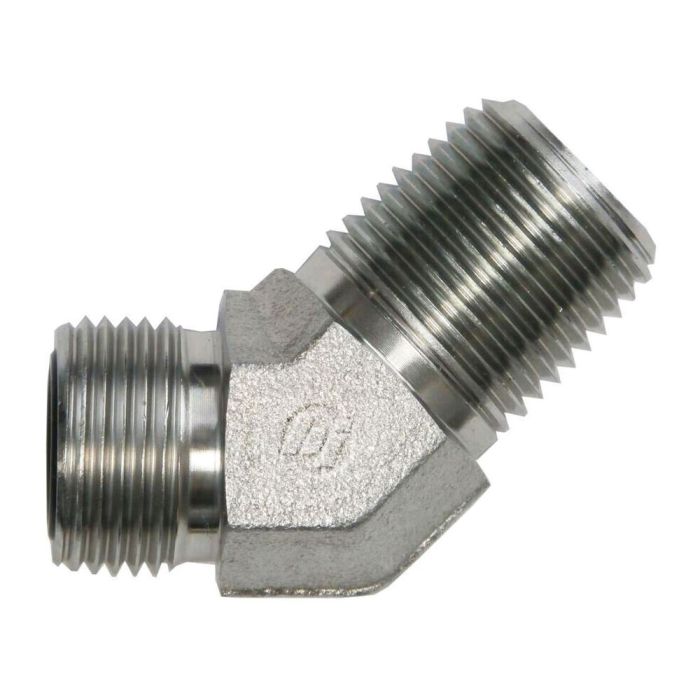

16MFS-16MP 45 DEG ELBOW

Description & Features

The 16MFS-16MP 45 Degree Elbow features a 1-7/16-12 A thread and a 1-11-1/2 B thread, with corresponding A drill size of 0.811 and B drill size of 0.938. The Jj flats measure 1.438, with an M length of 1.180 and an N length of 1.560.

This forged elbow ensures robust and reliable connections in demanding hydraulic applications. Designed with a tube OD of 1 inch, this FS2503-FG series elbow offers precise fit and secure performance.

SKU: FS2503-16-16-FG

Supplier Part Number (MPN): FS2503-16-16-FG

Alternate Part Numbers: AFF2093T1616S, C1ED48, FF2503-16-16, FS2503-16-16

Specifications

Brand BRENNAN	a Drill Dimensions 0.811 in	b Drill Dimensions 0.938 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Male ORFS, MNPT	Connection Type 1 Male SAE ORFS	Connection Type 2 Male SAE 30 deg NPTF	Dimension Standards SAE J1453, SAE J476	Finish Trivalent Zinc-Plated	Fitting Type 45 deg Elbow	Hex Size 1.438 in	jj Flat Dimensions 1.438 in	jj Flats Dimensions 1.438 in	Material Steel	Material Construction AISI 1045 Steel	Maximum Operating Pressure 3000 psi	Operating Temperature -40 to 250 deg F	Series FS2503-FG Series	Thread Size 1-7/16-12 x 1-11-1/2	Tube Outside Diameter 1 in

Product Questions & Answers (1)

Question by: Jerry R on Feb 20, 2026, 9:10 AM

What size is the tube that this elbow is meant to connect to?

Answer by: Customer Support on Feb 21, 2026, 10:39 AM

This elbow is designed for use with a 1-inch outer diameter tube.
