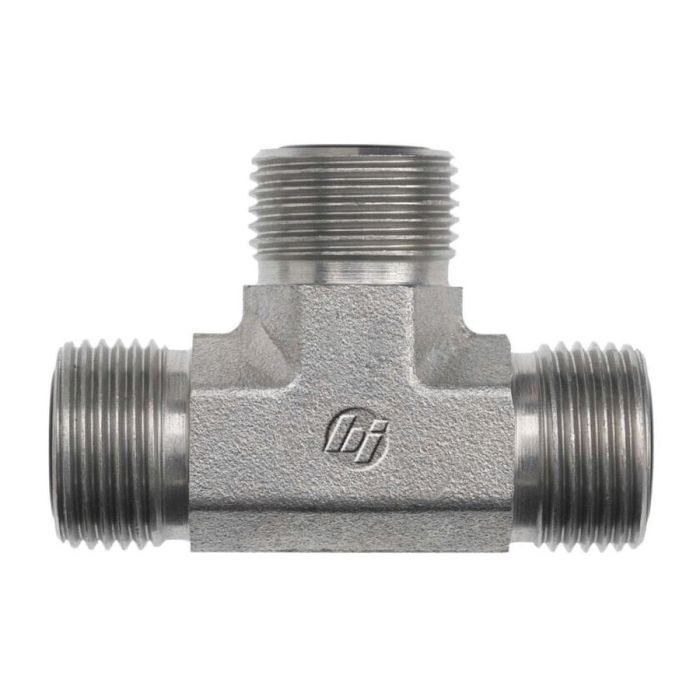

main product photo

06MFS-06MFS-06MFS Tee Forg

Ask A Question

Description & Features

Designed for equal-flow branch connections in hydraulic lines, the 06MFS-06MFS-06MFS Tee Forg is a forged tee fitting manufactured by Brennan Industries. All three ports share a 11/16-16 male thread with a 0.264 inch drill and are sized for 3/8 inch tube OD, making this a uniform all-ports configuration suited for inline tee arrangements where consistent port sizing is required.

Each port leg measures 0.980 inches in length, and the fitting features 0.750 inch jaw flats for wrench engagement during installation. The forged construction of this Brennan Series FS2603-FG fitting provides the structural integrity expected in demanding hydraulic circuit applications.

SKU: FS2603-06-06-06-FG

Supplier Part Number (MPN): FS2603-06-06-06-FG

Alternate Part Numbers: AFF1898T0606S, FF2603-06-06-06, FS2603-06-06-06

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.264 in
a2 Drill Dimensions
0.264 in
a3 Drill Dimensions
0.264 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Size 3
3/8 in
Connection Type
Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Connection Type 3
Male SAE ORFS
Dimension Standards
SAE J1453
Dimensions
1.96 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
3/4 in
jj Flats Dimensions
3/4 in
Material
Steel
Material Construction
AISI 1045 Steel
Operating Temperature
-40 to 250 deg F
Series
FS2603-FG Series
Thread Size
11/16-16
Tube OD
3/8 in
Tube Outside Diameter
0.38 in

Product Questions & Answers (1)

Question by: Todd J on Mar 11, 2026, 7:10 AM
How critical is it to get the right torque on this thing during install?
Answer by: Customer Support on Mar 12, 2026, 3:49 PM
Jaw flats of 0.750 inches are included to let you get a good wrench grip and apply the correct torque when installing this forged tee.
