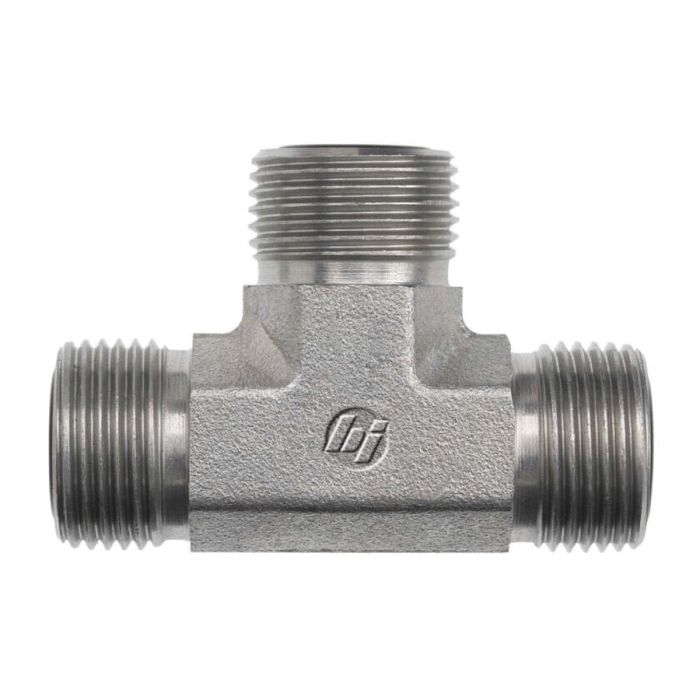

TEE MORS 1/2IN X MORS 1/2IN X MORS 1/2IN

Ask A Question

Description & Features

This forged tee, also known as a TEE MORS 1/2IN X MORS 1/2IN, features multiple connections for hydraulic systems. It has a Brennan A1 drill size of 0.264 with an 11/16-16 thread, a Brennan A2 drill size of 0.378 with a 13/16-16 thread, and a Brennan A3 drill size of 0.378 with a 13/16-16 thread.

This tee fitting has a Brennan Jj Flats dimension of 0.750, a Brennan M1 Length of 1.04, a Brennan M2 Length of 1.10, and a Brennan M3 Length of 1.10. This tee fitting is part of the Brennan Series FS2603-FG and designed for use with 3/8 and 1/2 inch OD tubes. It is designed for male connections.

SKU: FS2603-06-08-08-FG

Supplier Part Number (MPN): FS2603-06-08-08-FG

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.264 in
a2 Drill Dimensions
0.378 in
a3 Drill Dimensions
0.378 in
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Size 3
1/2 in
Connection Type
Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Connection Type 3
Male SAE ORFS
Dimension Standards
SAE J1453
Dimensions
2.14 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
3/4 in
jj Flats Dimensions
3/4 in
Material
Steel
Material Construction
AISI 1045 Steel
Operating Temperature
-40 to 250 deg F
Series
FS2603-FG Series
Thread Size
13/16-16 x 11/16-16

Product Questions & Answers (1)

Question by: Shawn M on Mar 9, 2026, 6:44 PM
What size tubing does this tee fitting work with? Just want to make sure it'll fit my setup.
Answer by: Customer Support on Mar 11, 2026, 11:07 AM
This tee is designed for use with either 3/8-inch or 1/2-inch OD tubes.
