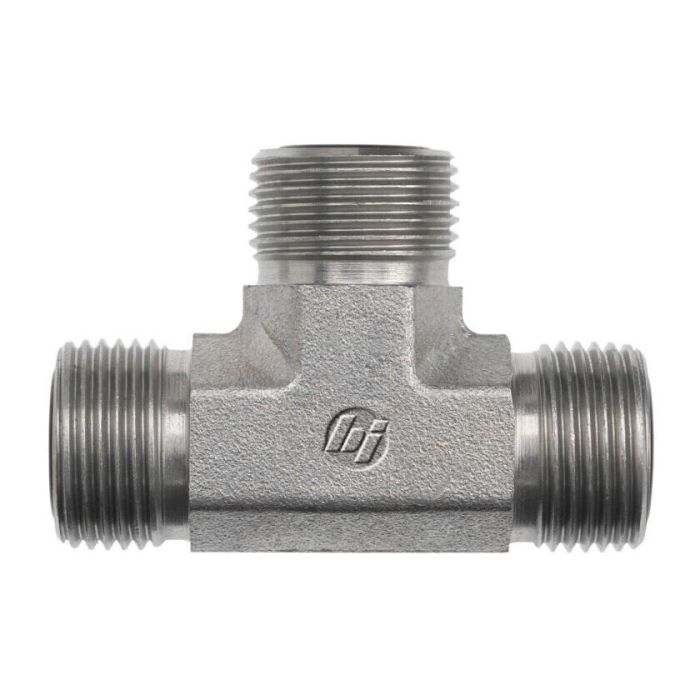

08MFS-08MFS-10MFS TEE

Forged construction and a tee configuration make the 08MFS-08MFS-10MFS Tee a reliable choice for hydraulic line branching where two equal-size ports and one larger port are required in a single fitting body. The two run ports carry 13/16-16 male face seal threads with a 0.378 inch drill, while the branch port steps up to a 1-14 male face seal thread with a 0.484 inch drill, accommodating 1/2 inch and 5/8 inch tube OD connections across the fitting.

Part of the Brennan Industries FS2603-FG series, this fitting is manufactured to forged standards that support durability in demanding hydraulic circuits. Across-flats measurement of 1.062 inches and port lengths of 1.21 inches on the run legs and 1.31 inches on the branch leg reflect a compact envelope suited to space-conscious installations. Male face seal (MFS) connections on all three ports provide leak-resistant sealing without the use of thread sealants.

SKU: FS2603-08-08-10-FG

Supplier Part Number (MPN): FS2603-08-08-10-FG
