10MFS-10MFS-10MFS Tee Forg

Ask A Question

Description & Features

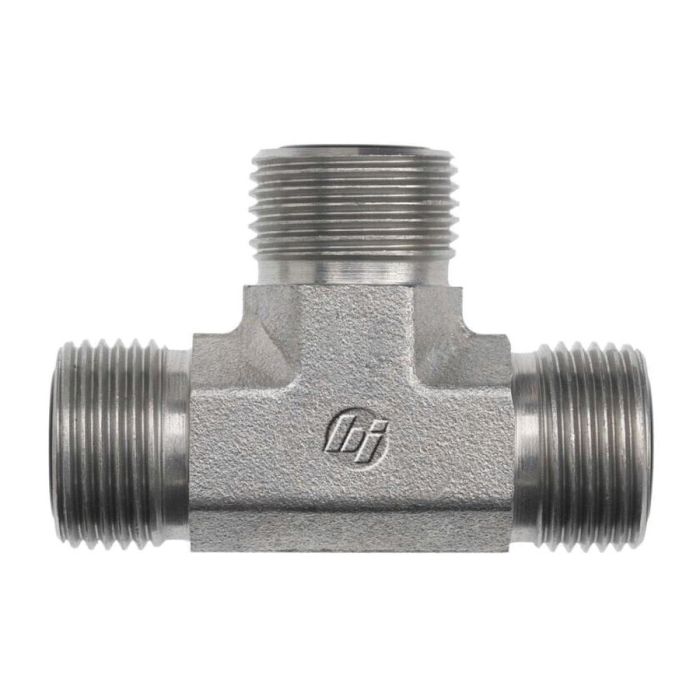

Manufactured by Brennan Industries, this forged tee fitting connects three 5/8" OD tube lines using equal 10MFS male flareless swage ends on all three ports. Each port carries a 1-14 thread specification with a 0.484" drill diameter, and all three legs share an identical 1.31" length, making this a fully symmetrical tee configuration. The 1.062" jaw flats accommodate standard wrenching during installation.

The 10MFS-10MFS-10MFS Tee Forged belongs to Brennan's FS2603-FG series and is constructed as a forged fitting, which supports reliable performance under hydraulic system pressure conditions. It is suited for use in fluid power and hydraulic line assemblies where a uniform three-way branch connection is required.

SKU: FS2603-10-10-10-FG

Supplier Part Number (MPN): FS2603-10-10-10-FG

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.484 in
a2 Drill Dimensions
0.484 in
a3 Drill Dimensions
0.484 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Size 3
5/8 in
Connection Type
Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Connection Type 3
Male SAE ORFS
Dimension Standards
SAE J1453
Dimensions
2.62 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
1.06 in
jj Flats Dimensions
1.062 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2603-FG Series
Thread Size
1-14S
Tube Outside Diameter
5/8 in

Product Questions & Answers (1)

Question by: Rick H on Nov 20, 2025, 9:24 AM
What size wrench do I need for installin' this tee?
Answer by: Customer Support on Nov 22, 2025, 6:27 AM
Jaw flats measure 1.062", so standard wrenches will fit just fine during installation.
