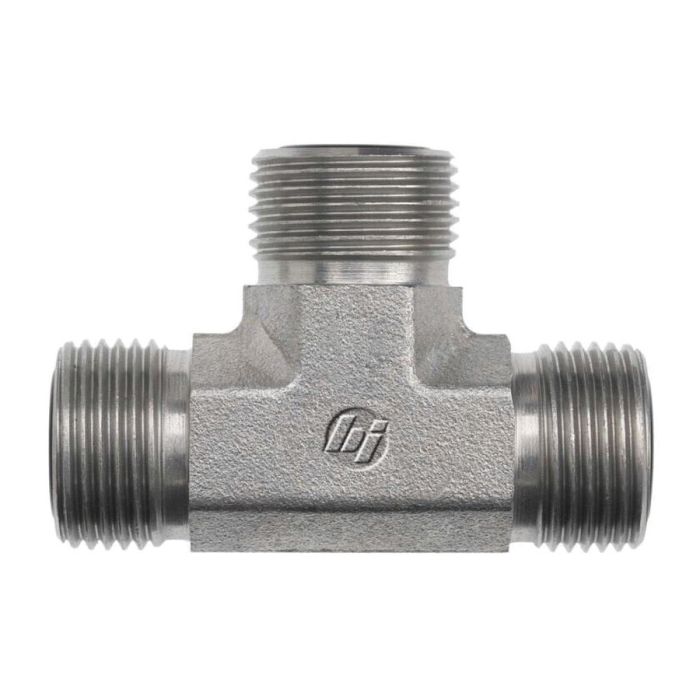

main product photo

16MFS-16MFS-16MFS Tee Forg

Ask A Question

Description & Features

A forged tee fitting designed for high-integrity hydraulic connections, the 16MFS-16MFS-16MFS Tee Forg from Brennan Industries features three equal ports, each with a 1-7/16-12 male face seal thread. The 1-inch tube OD and matching drill dimensions across all three ports make this a symmetrical, equal-leg tee suitable for branching hydraulic lines where consistent flow paths are required.

Forged construction provides the structural integrity expected in demanding hydraulic applications. All three legs share identical thread specifications and a 1.64-inch male length, with 1.438-inch flats for wrenching. Part of the Brennan FS2603-FG series, this fitting is built to the male face seal standard, offering reliable leak-resistant connections in medium- to high-pressure hydraulic circuits.

SKU: FS2603-16-16-16-FG

Supplier Part Number (MPN): FS2603-16-16-16-FG

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.811 in
a2 Drill Dimensions
0.811 in
a3 Drill Dimensions
0.811 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Connection Type 3
Male SAE ORFS
Dimension Standards
SAE J1453
Dimensions
3.28 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
1.438 in
jj Flats Dimensions
1.438 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2603-FG Series
Thread Size
1-7/16-12
Tube Outside Diameter
1 in

Product Questions & Answers (1)

Question by: Judy C on Apr 1, 2026, 12:21 PM
Reckon this tee can handle some serious pressure in a hydraulic setup?
Answer by: Customer Support on Apr 3, 2026, 6:37 AM
Forged construction gives this tee the structural integrity needed for demanding hydraulic applications, and it's built to the male face seal standard for reliable leak-resistant connections in medium- to high-pressure hydraulic circuits.
