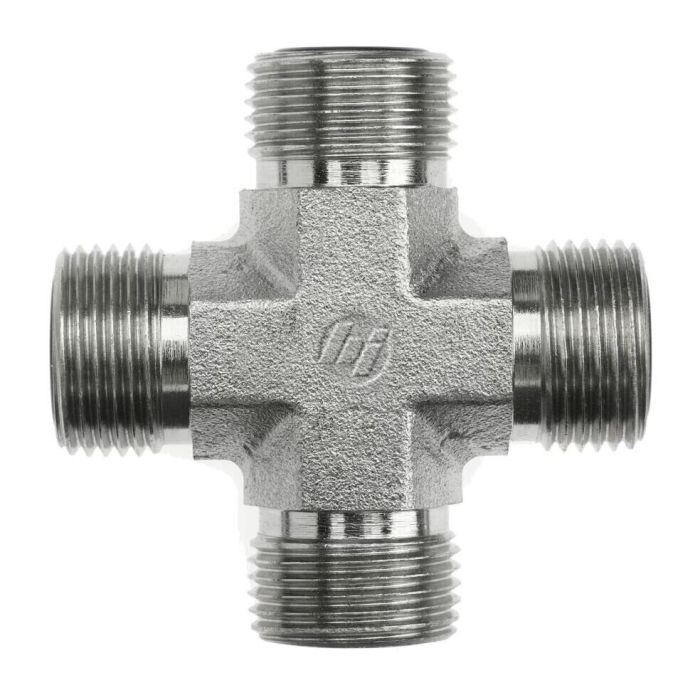

CROSS MALE ORS 3/8 IN

Forged for strength and dimensional consistency, the Cross Male ORS 3/8 In is a four-port forged cross fitting designed for hydraulic lines requiring a single inline junction point with four male O-Ring Face Seal (ORS) connections. All four ports share the same 11/16-16 thread and 0.264 in drill diameter, making this a fully symmetrical cross fitting suited to systems where flow must be distributed or joined at a single point.

Each port extends 0.98 in in length from center, and the fitting is wrench-driven with 0.750 in flats across all positions for consistent torque application. The forged construction of the Brennan Industries FS2650-FG series provides the structural integrity expected in demanding hydraulic circuit work. The male ORS thread type provides a leak-resistant metal-to-metal seal at every port when used with compatible female ORS fittings.

SKU: FS2650-06-06-06-06-FG

Supplier Part Number (MPN): FS2650-06-06-06-06-FG
