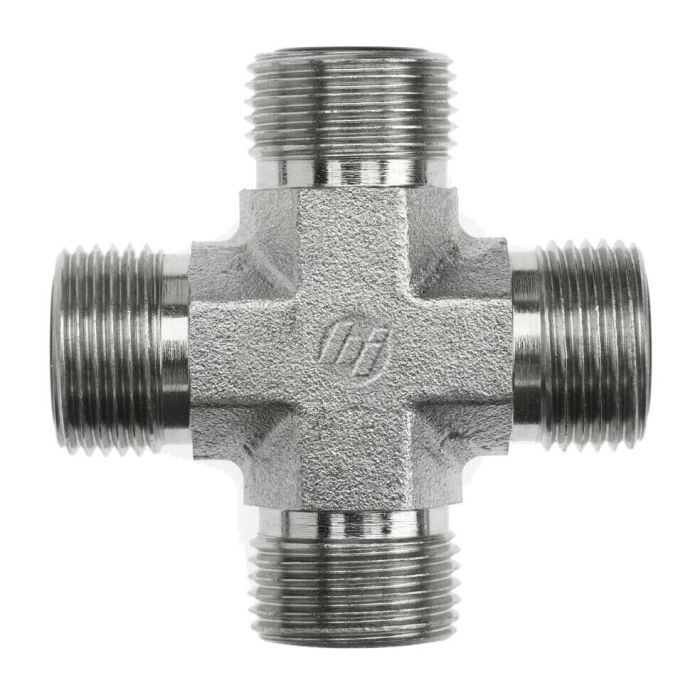

CROSS MALE ORS 1/2 IN

Ask A Question

Description & Features

Designed for four-way hydraulic connections, the Cross Male ORS 1/2 In is a forged cross fitting with four 13/16-16 male O-ring face seal threads, each on a 1/2 in tube OD. The forged construction provides consistent dimensional integrity across all four ports, with each thread engagement length held at 1.100 in and a wrench flat of 0.750 in for reliable torquing in tight installations.

All four ports share identical specifications, 13/16-16 thread with a 0.378 in drill, making this a symmetrical, balanced fitting suited for inline distribution points in hydraulic circuits. The O-ring face seal interface minimizes the risk of leakage under pressure, a key advantage in high-integrity fluid line assemblies. Manufactured by Brennan Industries under the FS2650-FG series.

SKU: FS2650-08-08-08-08-FG

Supplier Part Number (MPN): FS2650-08-08-08-08-FG

Alternate Part Numbers: FF2650-08-08-08-08

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.378 in
a2 Drill Dimensions
0.378 in
a3 Drill Dimensions
0.378 in
a4 Drill Dimensions
0.378 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Size 3
1/2 in
Connection Type
Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Connection Type 3
Male SAE ORFS
Connection Type 4
Male SAE ORFS
Dimension Standards
SAE J1453
Dimensions
2.2 in L x 2.2 in H
Finish
Trivalent Zinc-Plated
Fitting Type
Cross
Hex Size
3/4 in
jj Flats Dimensions
3/4 in
Material
Steel
Material Construction
AISI 1045 Steel
Operating Temperature
-40 to 250 deg F
Series
FS2650-FG Series
Thread Size
13/16-16
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Product Questions & Answers (1)

Question by: Lee H on Sep 15, 2025, 8:41 PM
Hey, could I use this cross fitting for hooking up four lines that all run at the same pressure?
Answer by: Customer Support on Sep 17, 2025, 7:14 AM
Forged construction ensures that all four ports maintain consistent dimensions and thread engagement, which is ideal for distributing pressure evenly across your hydraulic setup.
