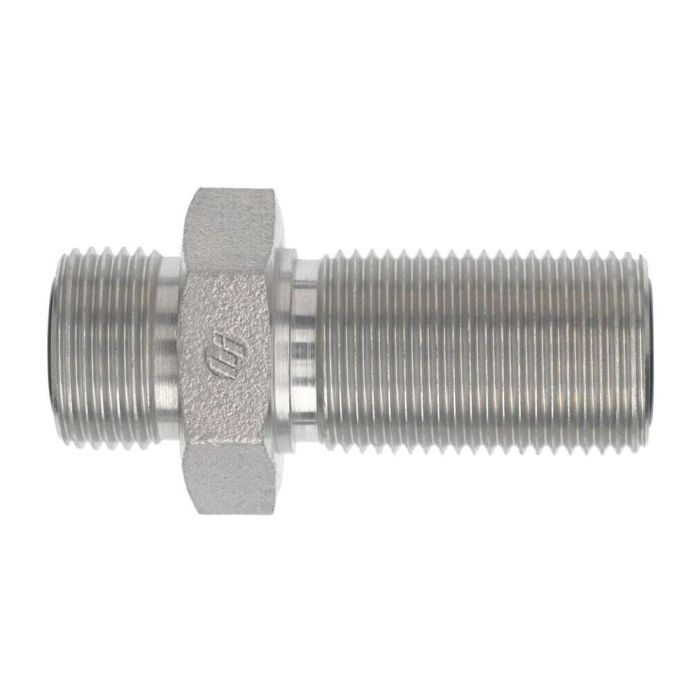

main product photo

10MFS-10MFS BULKHEAD UNION

Ask A Question

Description & Features

The 10MFS-10MFS Bulkhead Union from Brennan Industries Inc is engineered for applications requiring precise connectivity. Suitable for various industry-specific installations this union ensures reliable performance.

Manufactured to accommodate 5/8-inch tube O.D. it features a robust design with a 1-14 thread size and a 0.484 drill size for both A1 and A2 ends. The component has a hex size of 1.312 inches and a length of 2.62 inches making it a versatile choice for secure fixations.

Belonging to the FS2700 series this bulkhead union offers durability and stability required in demanding environments. Crafted with meticulous attention to detail it is an integral part for maintaining the integrity of complex systems in various industrial sectors.

Supplier Part Number: FS2700-10-10

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.484 in
a2 Drill Dimensions
0.484 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Dimension Standards
SAE J1453
Dimensions
2.62 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Union
Hex Size
1.312 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2700 Series
Thread Size
1-14S
Tube Outside Diameter
5/8 in

Product Questions & Answers (1)

Question by: Chad F on Aug 25, 2025, 3:21 PM
got a panel pass-through setup. is this the straight bulkhead union that takes 5/8 tube on both sides?
Answer by: Customer Support on Aug 27, 2025, 10:59 AM
For a straight bulkhead connection, this union is built for 5/8 inch tube O.D. and it is 10MFS on both ends with 1-14 threads on A1 and A2.
