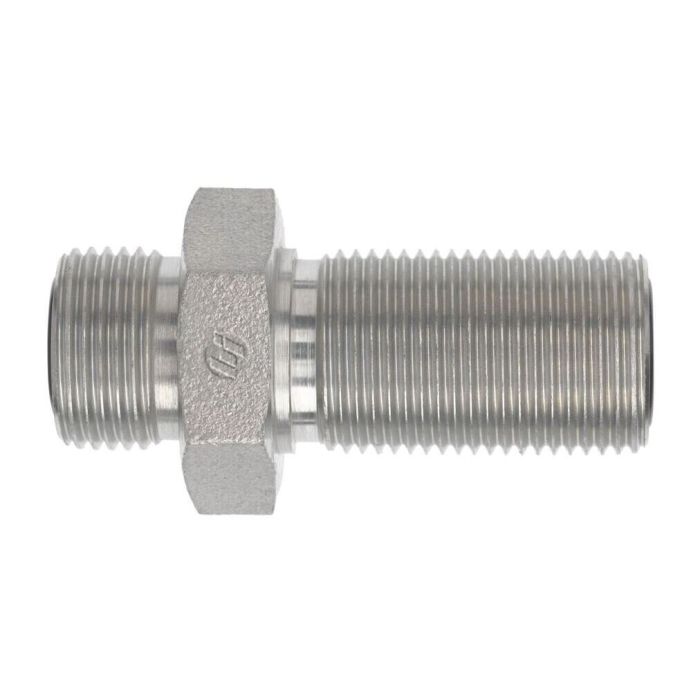

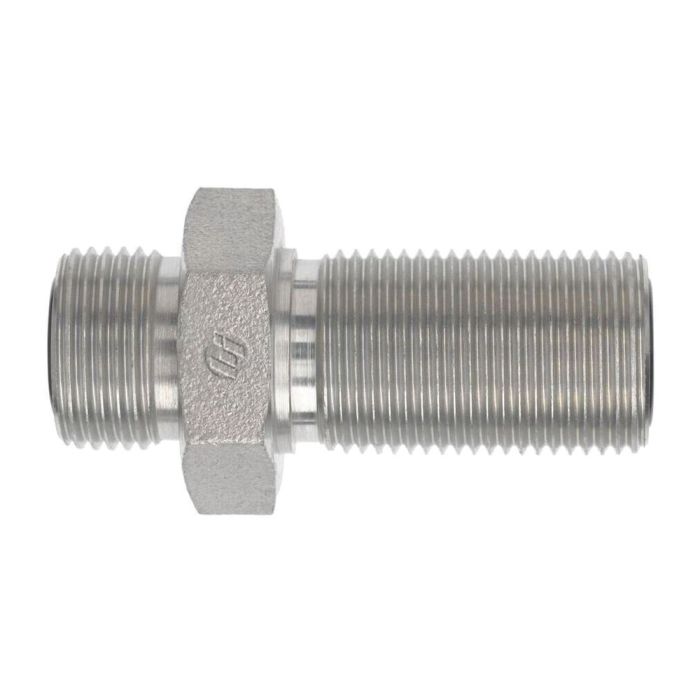

20MFS-20MFS BULKHEAD UNION

Ask A Question

Description & Features

This bulkhead union features a 1-1/4 inch tube OD, making it suitable for various hydraulic applications. The 20MFS-20MFS BULKHEAD UNION is manufactured to Brennan Series FS2700 standards. It has a Brennan A1 drill size of 1.024 inches with a 1-11/16-12 thread, and a Brennan A2 drill size of 1.024 inches with a 1-11/16-12 thread.

It features a 2.000 inch B Hex In and a 2.76 inch Brennan Gg Lgth.

SKU: FS2700-20-20

Supplier Part Number (MPN): FS2700-20-20

Specifications

Brand
BRENNAN
a1 Drill Dimensions
1.024 in
a2 Drill Dimensions
1.024 in
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Dimension Standards
SAE J1453
Dimensions
2.76 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Union
Hex Size
2 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2700 Series
Thread Size
1-11/16-12
Tube Outside Diameter
1-1/4 in

Product Questions & Answers (1)

Question by: Kent P on Apr 7, 2025, 11:57 AM
What's that B Hex In measurement for on this bulkhead union?
Answer by: Customer Support on Apr 9, 2025, 6:35 AM
That B Hex In dimension comes in at 2.000 inches. It's a measurement you'll want to keep in mind when you're working with it.
