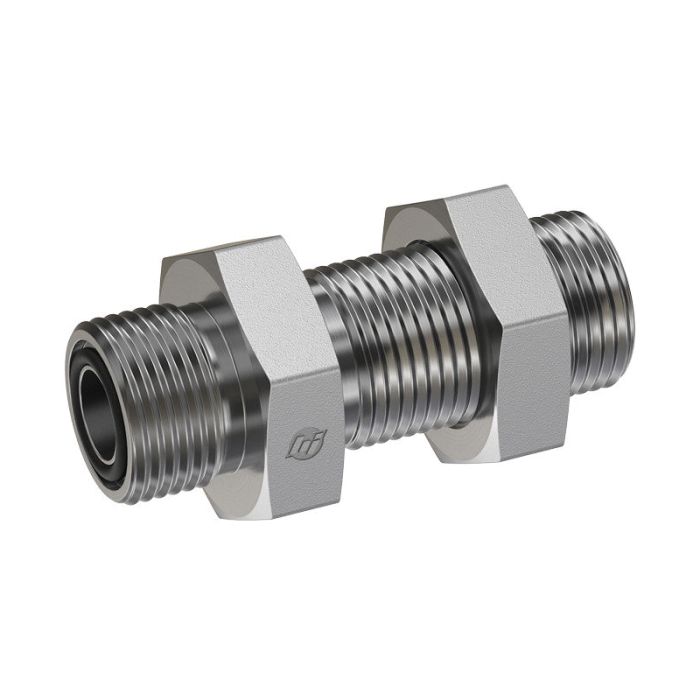

10MFS-10MFS BULKHEAD UNION W/LOCKNUT

Description & Features

The 10MFS-10MFS Bulkhead Union with Locknut is a precision-engineered solution by Brennan Industries Inc designed for secure connections in industrial environments. This bulkhead union features a 5/8" tube O.D. and incorporates a robust locking mechanism ensuring reliability and stability. Crafted to meet high standards the 10MFS-10MFS Bulkhead Union supports seamless integration with a 1-14 threaded connection on both ends. Its overall length of 2.62" and hex dimension of 1.312" provide a compact yet effective design for various industrial applications. Notably it includes an FS0306-10 locknut facilitating easy assembly and maintenance. Ideal for systems needing a durable and efficient connection component this bulkhead union excels in performance where consistent flow and secure fittings are critical. **Supplier Part Number**: FS2700-LN-10-10

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS2700-LN-10-10	Product Weight 0.55 lbs

Product Questions & Answers (1)

Question by: Pete W on Jan 12, 2026, 9:56 AM

what's the thread spec on both ends of this bulkhead union, and does it use the same size on each side?

Answer by: Customer Support on Jan 14, 2026, 7:37 AM

Both ends run a 1-14 thread, so you've got a matched connection on either side. The tube O.D. is 5/8" across the board, and the drill size comes in at 0.484 on both A1 and A2. Pretty straightforward setup if you're fitting it into a panel or bulkhead wall and need consistent specs end to end.
