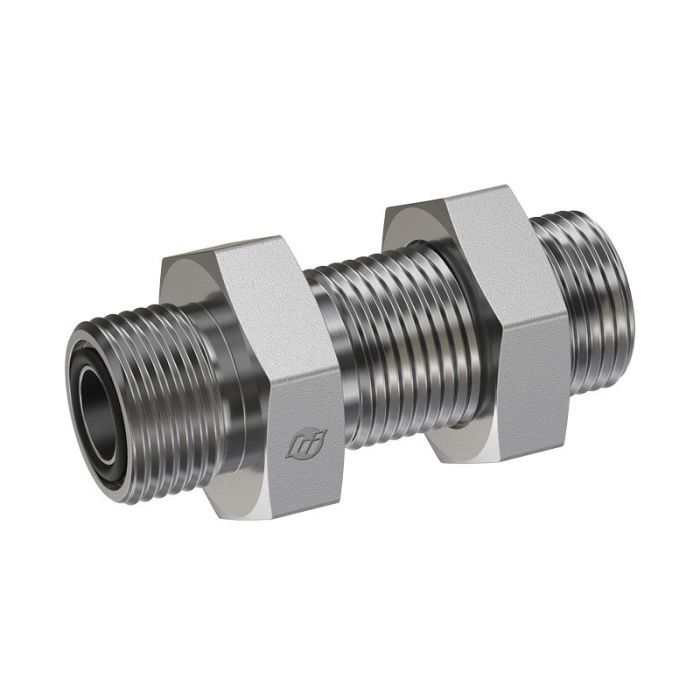

20MFS-20MFS BULKHEAD UNION W/LOCKNUT

Description & Features

Designed for through-panel or bulkhead-mounted installations, the 20MFS-20MFS Bulkhead Union with Locknut provides a secure, straight-through connection between two fluid lines separated by a wall or partition. Manufactured by Brennan Industries, this fitting accommodates 1-1/4" tube OD and uses 1-11/16-12 male faceseals on both ends, with a matching drill size of 1.024" on each side.

The assembled locknut (FS0306-20) is included, allowing the fitting to be clamped firmly against a bulkhead surface without additional hardware. At 2.76" in overall length and with a 1.024" hex, it is sized for standard wrench access in confined installations. Part of Brennan's FS2700-LN series, this union is well suited for hydraulic circuits requiring a clean, leak-resistant pass-through point in a panel or manifold wall.

SKU: FS2700-LN-20-20

Supplier Part Number (MPN): FS2700-LN-20-20

Alternate Part Numbers: 4325-20-20, AFF1994T2020S, FF2700-20-20

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS2700-LN-20-20	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Melvin P on Apr 12, 2025, 12:25 PM

Just wanna make sure, this fitting will let me run a line through a panel, right? Like, it's not just for connecting two hoses end-to-end in the open?

Answer by: Customer Support on Apr 14, 2025, 6:33 AM

Exactly, this bulkhead union is designed for running a fluid line through a panel or wall. The included locknut lets you clamp it securely in place.
