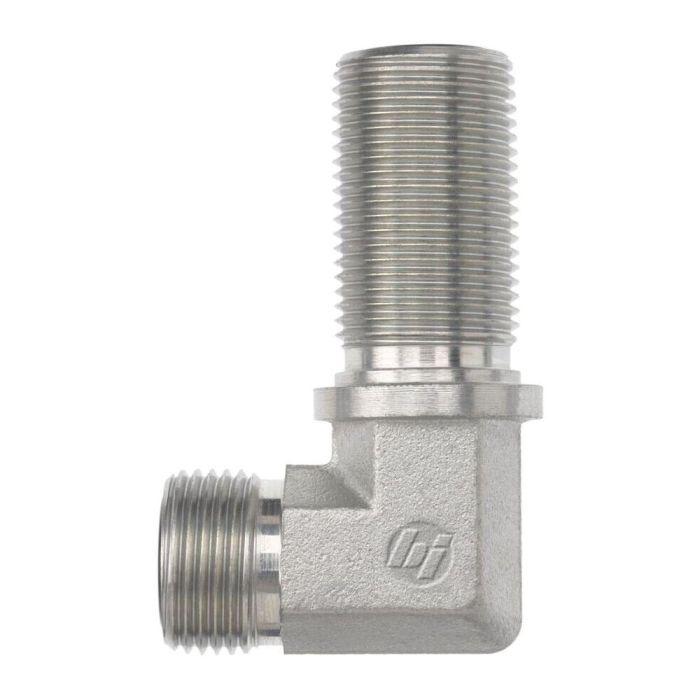

06MFS-06MFS 90 DEG BULKHEAD ELBOW

Ask A Question

Description & Features

This forged bulkhead elbow fitting from Brennan Industries Inc ensures durability and reliable performance in various industrial applications. Engineered with precision the 06MFS-06MFS 90 DEG Bulkhead Elbow features a compact design ideal for tight spaces.

Its 90-degree configuration allows for optimal fluid flow redirection contributing to efficient system layouts. The elbow is designed with a 0.264-inch drill and 11/16-16 thread on both sides offering strong and secure connections.

The component has a tube outer diameter of 3/8 inch making it compatible with standard tubing sizes in the industry. Measuring 1.02 inches in R length and 2.05 inches in S length this fitting ensures a snug fit and stable installation.

Additionally the 0.750-inch flats provide ease of installation and maintenance reducing downtime. The product belongs to the FS2701-FG series known for high-quality and performance under demanding conditions.

Supplier Part Number: FS2701-06-06-FG

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.264 in
a2 Drill Dimensions
0.264 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Dimension Standards
SAE J1453
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
3/4 in
jj Flats Dimensions
3/4 in
Material
Steel
Material Construction
AISI 1045 Steel
Operating Temperature
-40 to 250 deg F
Series
FS2701-FG Series
Thread Size
11/16-16
Tube OD
3/8 in
Tube Outside Diameter
0.38 in

Product Questions & Answers (2)

Question by: Brett Y on Jan 15, 2026, 9:55 AM
Got a panel that's only got so much real estate to work with, will a 3/8 inch tube line run clean through this fitting without needing any adapters on either end?
Answer by: Customer Support on Jan 17, 2026, 6:36 AM
Both sides of this fitting are built for 3/8 inch tube OD, so as long as your line matches that size, you're going straight in without any intermediate adapters. The 11/16-16 thread on each end handles the connection, and the 0.264 inch drill on both ports keeps flow moving through at a consistent bore. For a bulkhead mount in a tight panel, that 90 degree turn does a lot of the routing work for you.
Question by: Patty C on May 1, 2025, 7:17 PM
Hey, will this elbow fitting work with standard 3/8 inch tubing?
Answer by: Customer Support on May 2, 2025, 8:59 PM
This bulkhead elbow is designed to connect directly to 3/8 inch outer diameter tubing.
