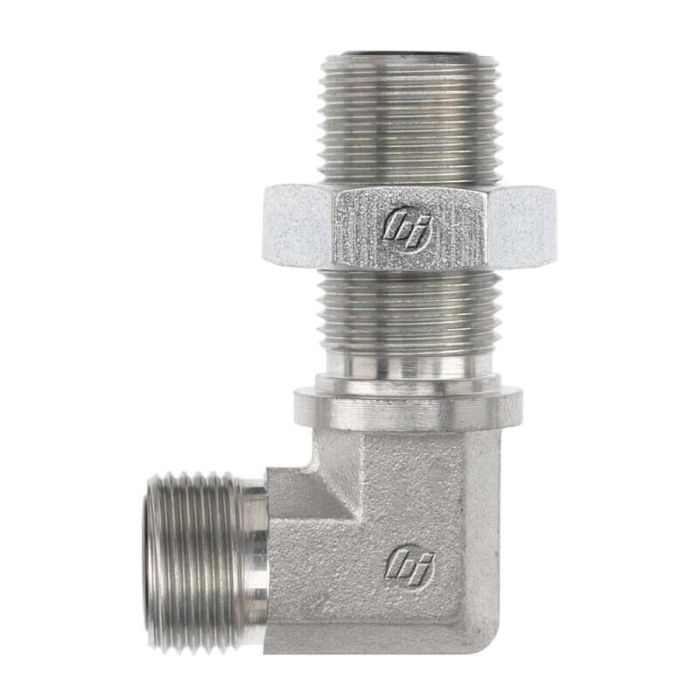

06MFS-06MFS BLKHD 90 ELB FRG WITH LOCK

Ask A Question

Description & Features

This 06MFS-06MFS BLKHD 90 ELB FRG WITH LOCK features a 3/8 inch tube OD and a 90-degree elbow fitting. The fitting incorporates a bulkhead design, enhancing its stability and security in demanding applications.

Manufactured by Brennan Industries, this FS2701-LN-FG series fitting includes a locknut, FS0306-06, for secure assembly. The Brennan A1 and A2 drill sizes are 0.264 with 11/16-16 threads, with JJ flats measuring 0.750. It has an R length of 1.02 and an S length of 2.05.

SKU: FS2701-LN-06-06-FG

Supplier Part Number (MPN): FS2701-LN-06-06-FG

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.264 in
a2 Drill Dimensions
0.264 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Dimension Standards
SAE J1453
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
3/4 in
jj Flats Dimensions
3/4 in
Locknut Assembled
FS0306-06
Material
Steel
Material Construction
AISI 1045 Steel
Operating Temperature
-40 to 250 deg F
Series
FS2701-LN-FG Series
Thread Size
11/16-16
Tube OD
3/8 in
Tube Outside Diameter
0.38 in

Product Questions & Answers (1)

Question by: Dale C on Aug 26, 2025, 3:05 PM
Will this fitting work for a setup needing a secure connection at a panel or wall?
Answer by: Customer Support on Aug 28, 2025, 9:07 AM
This bulkhead fitting is designed to provide that extra stability you're looking for when mounting through panels or walls. The locknut helps keep everything tight and secure.
