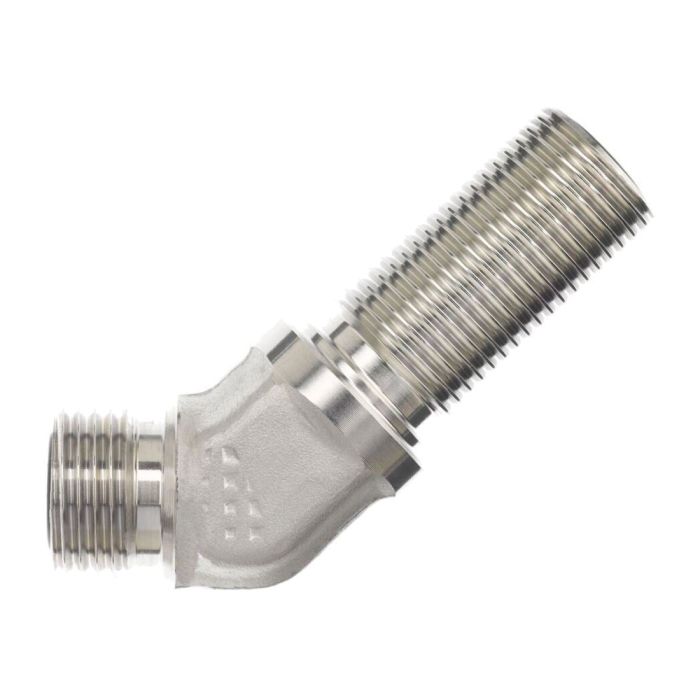

main product photo

08MFS-08MFS 45 DEG BULKHEAD ELBOW

Ask A Question

Description & Features

Experience efficient hydraulic system integration with the 08MFS-08MFS 45 DEG Bulkhead Elbow, designed for optimal performance in industrial applications. This forged elbow features a 45-degree angle, providing smooth directional flow transitions within hydraulic circuits. With a Brennan Series FS2702-FG, it offers robust construction suitable for demanding environments.

Specifically engineered for secure connections, this elbow incorporates 13/16-16 threads and a tube outer diameter of 1/2 inch, ensuring compatibility with standard hydraulic setups. The elbow's compact design includes a Brennan Jj Flats measurement of 0.750 and lengths of 0.80 and 2.01 inches for versatility in space-constrained installations. Manufactured by Brennan Industries, this component guarantees quality and reliability.

SKU: FS2702-08-08-FG

Supplier Part Number (MPN): FS2702-08-08-FG

Alternate Part Numbers: FF2702-08-08

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.378 in
a2 Drill Dimensions
0.378 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Dimension Standards
SAE J1453
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
3/4 in
jj Flats Dimensions
3/4 in
Material
Steel
Material Construction
AISI 1045 Steel
Operating Temperature
-40 to 250 deg F
Series
FS2702-FG Series
Thread Size
13/16-16
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Product Questions & Answers (1)

Question by: Brent H on Mar 29, 2026, 12:11 PM
What size tubing does this bulkhead elbow fit?
Answer by: Customer Support on Mar 30, 2026, 7:28 PM
This elbow is made to work with 1/2 inch outer diameter tubing.
