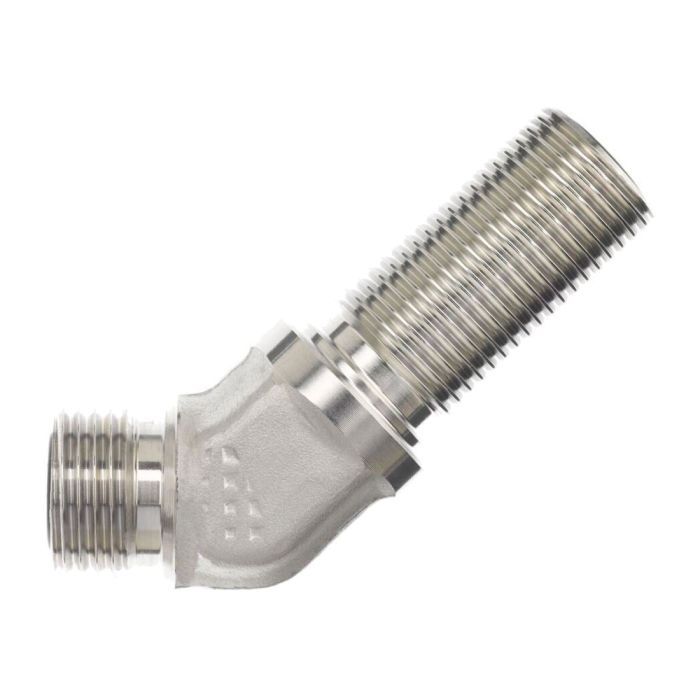

main product photo

BRENNAN 12MFS-12MFS Bulkhead 45 Elbow F

Ask A Question

Description & Features

Designed for bulkhead installations requiring a 45-degree directional change, the Brennan 12MFS-12MFS Bulkhead 45 Elbow F is a forged fitting built for reliability in hydraulic line routing. Both ports feature 1-3/16-12 male face seal threads with a 0.609 drill, sized for 3/4-inch tube OD connections. The forged construction of the Brennan FS2702-FG series provides the structural integrity expected in demanding hydraulic applications.

With a panel length of 1.020 inches and an overall length of 2.390 inches, this fitting is compact enough for tight panel installations while accommodating standard wrench flats of 1.188 inches across. The matching port sizes on both ends make it well-suited for straight-through bulkhead applications where a 45-degree offset is needed without a size transition.

SKU: FS2702-12-12-FG

Supplier Part Number (MPN): FS2702-12-12-FG

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.609 in
a2 Drill Dimensions
0.609 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Dimension Standards
SAE J1453
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1.188 in
jj Flats Dimensions
1.188 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2702-FG Series
Thread Size
1-3/16-12
Tube Outside Diameter
3/4 in

Product Questions & Answers (1)

Question by: Patty R on Jun 24, 2025, 5:00 PM
Reckon this elbow fitting'd work alright for runnin' hydraulic lines through a panel? Need somethin' that can handle a 45-degree turn.
Answer by: Customer Support on Jun 26, 2025, 6:18 AM
Designed specifically for bulkhead mounting where you need that 45-degree change in direction, this Brennan elbow fitting ought to do the trick.
