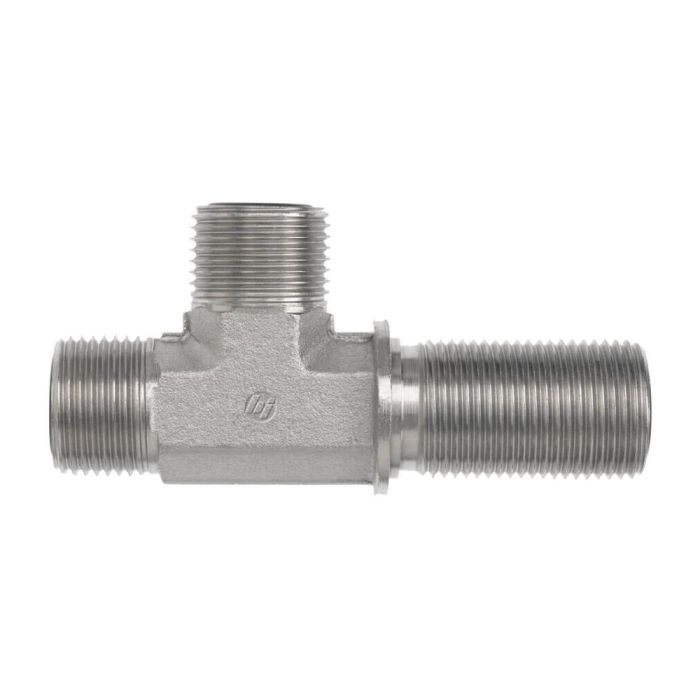

12MFS-12MFS-12MFS BULKHEAD RUN TEE

Ask A Question

Description & Features

Designed for robust connectivity in hydraulic systems, the 12MFS-12MFS-12MFS Bulkhead Run Tee offers a reliable solution for precise fluid control. This forged fitting features three 1-3/16-12 threads, ensuring compatibility with a wide range of hydraulic applications. With a consistent tube outer diameter of 3/4 inch, it facilitates seamless integration into existing setups.

This bulkhead run tee, part of the Brennan FS2704-FG series, is characterized by its durable construction and optimal dimensions. The component's drill size of 0.609 and length specifications of 1.52 and 2.65 inches contribute to its stability and effectiveness in demanding environments. Its 1.188-inch flats provide ease of installation and maintenance, enhancing operational efficiency.

SKU: FS2704-12-12-12-FG

Supplier Part Number (MPN): FS2704-12-12-12-FG

Alternate Part Numbers: FF2704-12-12-12

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.609 in
a2 Drill Dimensions
0.609 in
a3 Drill Dimensions
0.609 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Size 3
3/4 in
Connection Type
Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Connection Type 3
Male SAE ORFS
Dimension Standards
SAE J1453
Dimensions
4.17 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
1.188 in
jj Flats Dimensions
1.188 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2704-FG Series
Thread Size
1-3/16-12
Tube Outside Diameter
3/4 in

Product Questions & Answers (1)

Question by: Frank R on Jul 5, 2025, 1:19 PM
What size is the wrench flats on this bulkhead tee?
Answer by: Customer Support on Jul 7, 2025, 12:58 PM
The wrench flats measure 1.188 inches, which should make installation and maintenance a bit easier.
