Danfoss / Eaton IND DIV Swivel J

Description & Features

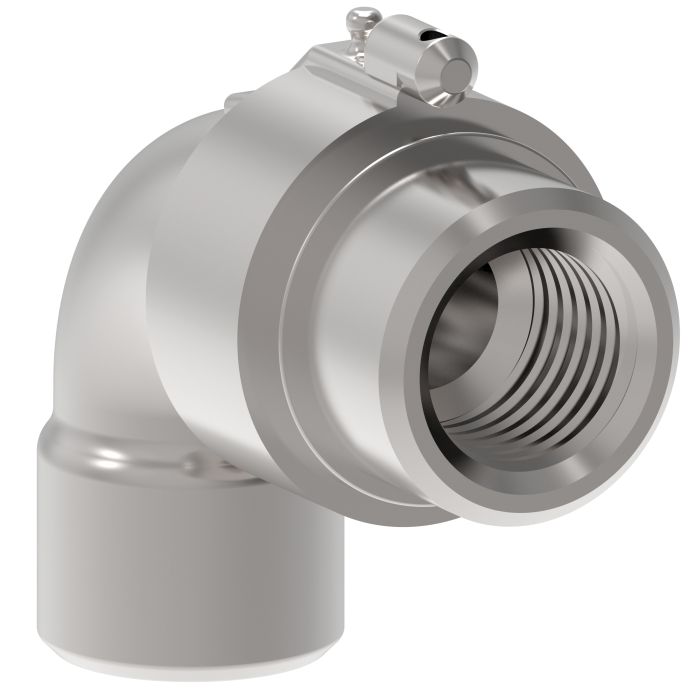

The Danfoss / Eaton IND DIV Swivel J, also known as an Aeroquip swivel joint, is constructed from durable steel for demanding hydraulic applications.

This complete swivel joint features female NPTF end connections, both with a size of 1 inch. It is designed to perform reliably in a minimum working temperature of -40 degrees.

SKU: FS59000-1616-01

Supplier Part Number (MPN): FS59000-1616-01

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type FNPT	Connection Type 1 Female NPTF	Connection Type 2 Female NPTF	Drop Dimensions 2-1/2 in	Finish Zinc-Plated	Fitting Type Swivel Joint	Material Steel	Material Construction Carbon Steel	Maximum Operating Pressure 5000 psi	nmfc 50	Operating Temperature -40 to 250 deg F	Seal Material Buna-N	Segment Code C	Series FS5900 Series	Thread Size 1-11-1/2

Product Questions & Answers (1)

Question by: Roger A on Dec 2, 2025, 8:47 AM

Will this swivel fitting work with regular hydraulic fluid?

Answer by: Customer Support on Dec 4, 2025, 6:06 AM

This Danfoss/Eaton swivel joint is made from steel, so it's compatible with standard hydraulic fluids in industrial applications. You can also refer to the fluid compatibility document for further details.
