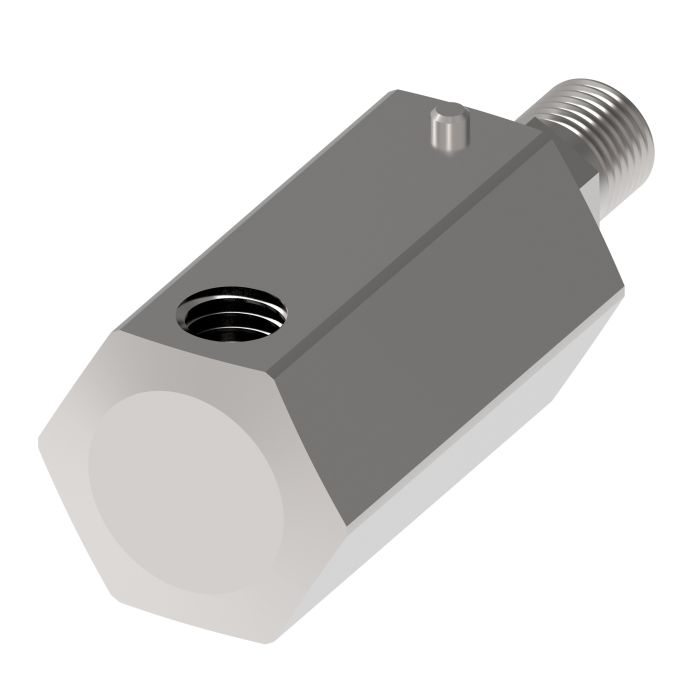

DANFOSS / EATON SWIVEL

Description & Features

Designed for rotational fluid transfer in hydraulic systems, the Danfoss / Eaton Swivel is part of the FS5900 Series and built for reliable performance in demanding industrial environments. Both ends feature 1/4 in. NPTF connections, female on one end, male on the other, making it well-suited for applications requiring a fixed-to-rotating interface without line twist.

Constructed from steel, this swivel joint is rated for a minimum working temperature of -40°F, supporting use in cold-environment applications. The 1/4 in. swivel size and compact form factor make it a practical choice for tight installation spaces in mobile equipment, industrial machinery, and hydraulic circuit assemblies.

Manufactured under the Aeroquip brand within the Eaton product family.

SKU: FS59002-0404-01

Supplier Part Number (MPN): FS59002-0404-01

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
FNPT, MNPT
Connection Type 1
Female NPTF
Connection Type 2
Male NPTF
Dimensions
3.2 in L
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Glycol, Hydraulic Oils, Water
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
5000 psi
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
Buna-N
Segment Code
C
Series
FS5900 Series
Thread Sealant
Without Thread Sealant
Thread Size
1/4-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Connection Type Dimensions Price Action
Danfoss / Eaton IND DIV Swivel J

FS59000-1616-01

1 in

1 in

FNPT

DANFOSS / EATON SWIVELS - CODE SW

FS59002-0606-75

3/8 in

3/8 in

FNPT, MNPT

3.67 in L

DANFOSS / EATON COUPLING

FS59002-1616-75

1 in

1 in

FNPT, MNPT

4.88 in L

Product Questions & Answers (1)

Question by: Dwayne A on Dec 10, 2025, 1:27 PM
Will this swivel work okay in a setup that gets pretty cold?
Answer by: Customer Support on Dec 12, 2025, 6:36 AM
With a minimum working temperature of -40°F, this swivel joint is designed to handle cold-environment applications.
