DANFOSS / EATON SWIVELS - CODE SW

Ask A Question

Description & Features

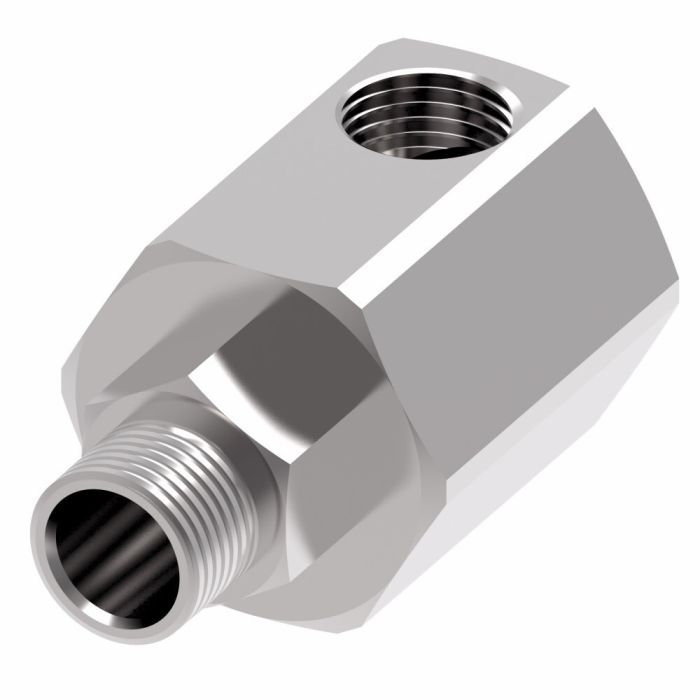

Designed for rotational fluid transfer in hydraulic systems, this steel swivel joint connects 3/8 in. NPTF female to 3/8 in. NPTF male ends, allowing lines to rotate freely and reduce stress on connected fittings. The female-to-male configuration suits inline installations where continuous or intermittent rotation is required.

Part of the Danfoss / Eaton Swivels - Code SW product line under the Aeroquip brand, this swivel joint is built from steel for durability in demanding industrial environments. It carries a minimum working temperature rating of -20°F, supporting reliable performance in cold-weather applications. With a swivel size of 0.375 in. and a hex size of 0.94 in., the unit is compact and compatible with standard tooling for installation and removal.

SKU: FS59002-0606-75

Supplier Part Number (MPN): FS59002-0606-75

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
FNPT, MNPT
Connection Type 1
Female NPTF
Connection Type 2
Male NPTF
Dimensions
3.67 in L
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Hydraulic Oil
Hex Size
1.88 in, 0.94 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
5000 psi
nmfc
50
Seal Material
Buna-N
Segment Code
C
Series
FS5900 Series
Thread Sealant
Without Thread Sealant
Thread Size
3/8-18

Product Questions & Answers (1)

Question by: Curt C on May 25, 2025, 11:44 AM
Reckon this'll hold up alright in a hydraulic system that gets pretty darn cold in the winter? We're talkin' below zero sometimes.
Answer by: Customer Support on May 27, 2025, 6:45 AM
This swivel joint is rated for a minimum working temperature of -20°F, so it should perform reliably even in cold-weather conditions.
