DANFOSS / EATON SWIVELS - CODE SW

Ask A Question

Description & Features

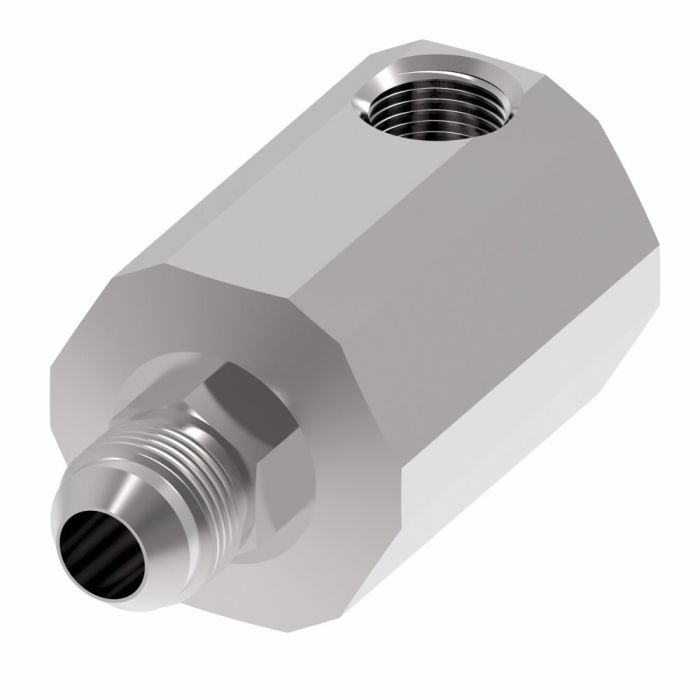

Designed for hydraulic lines requiring rotational flexibility, this 3/4 in. steel swivel joint from the Danfoss / Eaton FS5900 Series provides a reliable connection between fixed and moving circuit components. The female NPTF end pairs with a male UN threaded end, making it well-suited for installations where thread compatibility across different standards is required.

Constructed from steel, the Danfoss / Eaton Swivels - Code Sw carries a minimum working temperature rating of -20°F and is sized at 3/4 in. swivel diameter with a product width of 2.12 in. The 1.19 in. hex on the male end allows for standard wrench engagement during installation. At just under 4 lb., this is a solid, full-metal assembly intended for industrial hydraulic use. Aeroquip branding applies to this product line.

SKU: FS59003-1212-75

Supplier Part Number (MPN): FS59003-1212-75

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
FNPT, Male
Connection Type 1
Female NPTF
Connection Type 2
Male UNF
Dimensions
4.43 in L
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Hydraulic Oil
Hex Size
2.12 in, 1.19 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
3500 psi
nmfc
50
Seal Material
Buna-N
Segment Code
C
Series
FS59003 Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-14, 11/16-12

Product Questions & Answers (1)

Question by: Vince G on May 17, 2025, 9:09 AM
What kind of hydraulic fluid works best in this swivel? Gotta make sure I don't mess anything up.
Answer by: Customer Support on May 19, 2025, 6:00 AM
You'll want to check the fluid compatibility document linked on the product page. It'll have the specifics to keep this swivel running smoothly.
