DANFOSS / EATON SWIVELS - CODE SW

Description & Features

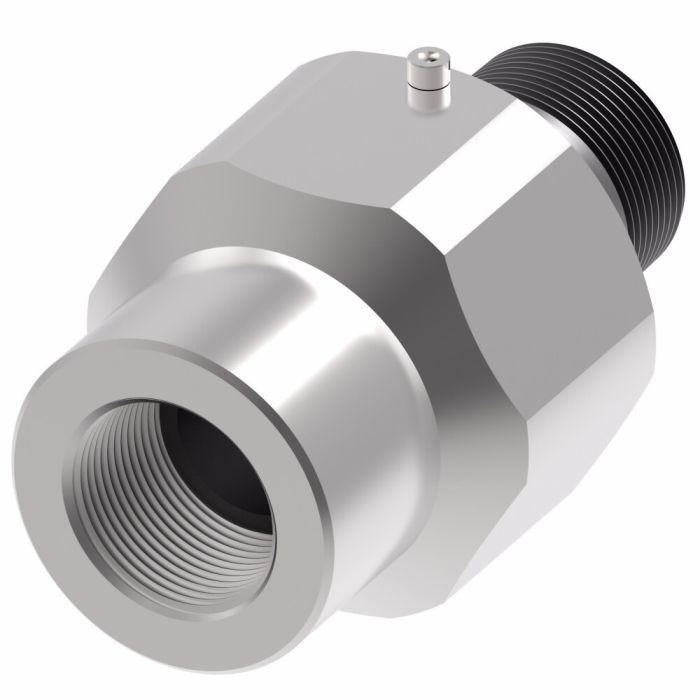

This DANFOSS / EATON SWIVELS - CODE SW swivel joint is constructed from steel for durability. It features female NPTF end connections on one side and male NPTF end connections on the other, both with a 0.75 inch size.

This swivel joint offers reliable performance in demanding hydraulic applications, and is designed to operate in temperatures as low as -40 degrees Fahrenheit. The swivel size is 0.75 inches.

SKU: FS59004-1212-01

Supplier Part Number (MPN): FS59004-1212-01

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type FNPT, MNPT	Connection Type 1 Female NPTF	Connection Type 2 Male NPTF	Dimensions 4.04 in L	Finish Zinc-Plated	Fitting Type Swivel Joint	Fluid Glycol, Hydraulic Oils, Water	Hex Size 2.12 in, 1.19 in	Material Steel	Material Construction Carbon Steel	Maximum Operating Pressure 3500 psi	nmfc 50	Operating Temperature -40 to 250 deg F	Seal Material Buna-N	Segment Code C	Series FS59004 Series	Thread Sealant Without Thread Sealant	Thread Size 3/4-14

Product Questions & Answers (1)

Question by: Ricky H on Nov 9, 2025, 11:18 AM

What kind of material is this swivel made from?

Answer by: Customer Support on Nov 10, 2025, 3:51 PM

This swivel joint is constructed from steel, offering good durability for hydraulic applications.
