Danfoss / Eaton OLD# BD58000-12-01

Description & Features

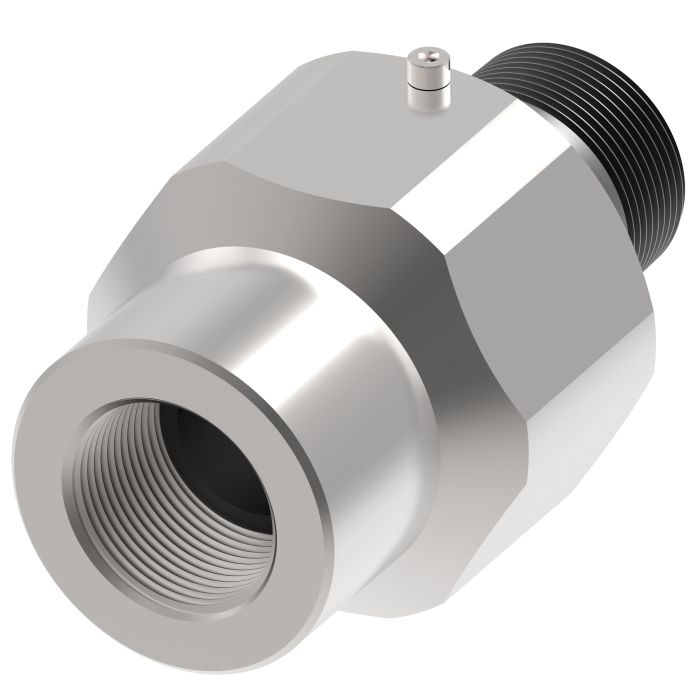

Designed for rotational movement in hydraulic lines, this 3/4 inch swivel joint handles both ends in 3/4 inch NPTF thread, one female and one male, allowing fluid lines to rotate freely without twisting or stressing connected components. Steel construction supports reliable performance across a working temperature range starting at -20°F, making it suited for demanding industrial hydraulic applications.

The Danfoss / Eaton OLD# BD58000-12-01 is part of the Aeroquip FS5900 Series and is classified as a complete swivel joint assembly. With a hex size of 1.19 inches and a package weight of 0.5 lb, it is a compact, ready-to-install component.

SKU: FS59004-1212-75

Supplier Part Number (MPN): FS59004-1212-75

Alternate Part Numbers: C1JF31

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
FNPT, MNPT
Connection Type 1
Female NPTF
Connection Type 2
Male NPTF
Dimensions
4.04 in L
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Hydraulic Oil
Hex Size
2.12 in, 1.19 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
5000 psi
nmfc
50
Seal Material
Buna-N
Segment Code
C
Series
FS5900 Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-14

Similar Products

Model Number Connection Size 1 Connection Size 2 Connection Type Dimensions Price Action
Danfoss / Eaton HVY Duty Straight IND

FS59004-0404-01

1/4 in

1/4 in

FNPT, MNPT

3.23 in L

Danfoss / Eaton BARCO Swivel

FS59004-0606-75

3/8 in

3/8 in

FNPT, MNPT

3.62 in L

Danfoss / Eaton BARCO Swivel

FS59004-0808-75

1/2 in

1/2 in

FNPT, MNPT

3.97 in L

DANFOSS / EATON 1 MNPT X 1 FNPT SWV

FS59004-1616-75

1 in

1 in

FNPT, MNPT

4.57 in L

DANFOSS / EATON SWIVELS - CODE SW

FS59005-0608-75

3/4 in

1/2 in

FNPT, MPT

3.72 in L

DANFOSS / EATON SWIVELS - CODE SW

FS59006-0808-75

1/2 in

1/2 in

Female JIC, Male JIC

3.48 in L

Danfoss / Eaton BARCO SWIV

FS59006-1212-75

3/4 in

3/4 in

Female JIC, Male JIC

3.88 in L

DANFOSS / EATON SWIVELS - CODE SW

FS59006-1616-75

1 in

1 in

Female JIC, Male JIC

4.03 in L

Product Questions & Answers (1)

Question by: Brent C on Jun 7, 2025, 7:06 AM
What kind of temperature range can this handle?
Answer by: Customer Support on Jun 8, 2025, 9:55 PM
This steel swivel joint is rated to operate reliably from -20°F upwards, making it a good fit for industrial hydraulic applications that see some temperature extremes.
