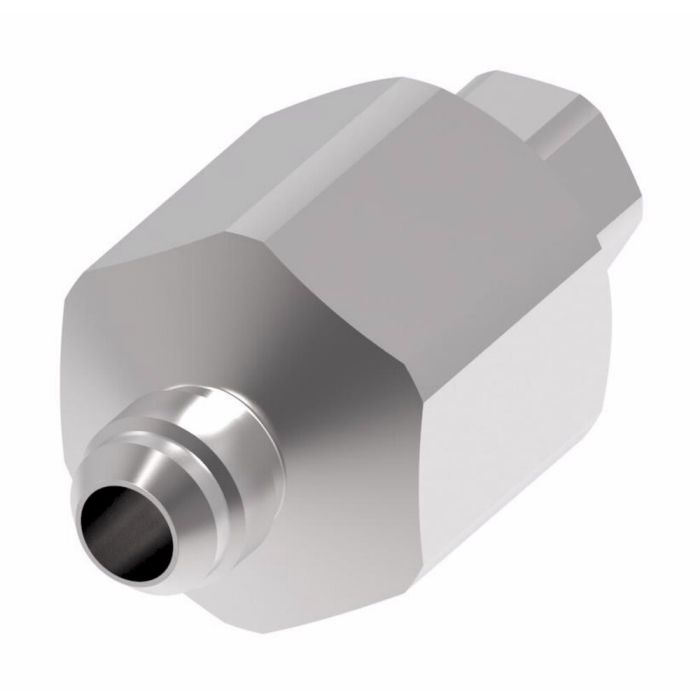

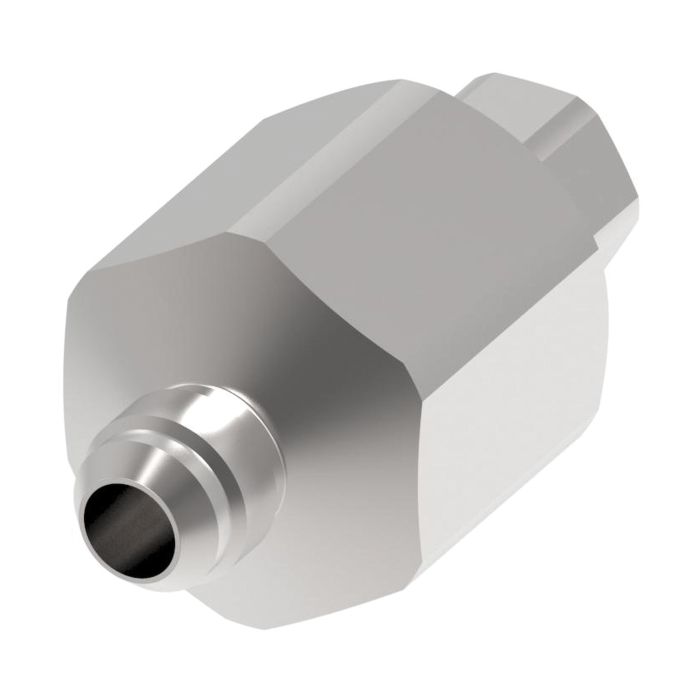

main product photo

DANFOSS / EATON SWIVELS - CODE SW

Ask A Question

Description & Features

Designed for rotational flexibility in hydraulic circuits, this steel swivel joint handles half-inch SAE 37 (JIC) connections on both ends, with a male end one side and a female end on the other. The 0.375-inch swivel size and 0.94-inch hex on the female end suit compact installation environments where routing adjustments are needed without stressing connected lines.

Part of the Danfoss / Eaton Swivels - Code SW series, this joint is manufactured by Eaton Aeroquip and rated for a minimum working temperature of -20°F, making it suitable for cold-environment industrial hydraulic applications. Steel construction supports durability in demanding service conditions.

SKU: FS59006-0808-75

Supplier Part Number (MPN): FS59006-0808-75

Alternate Part Numbers: C1GE98

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female JIC, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
Female SAE 37 deg JIC
Dimensions
3.48 in L
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Hex Size
1.88 in, 0.94 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
5000 psi
nmfc
50
Seal Material
Buna-N
Segment Code
C
Series
FS5900 Series
Thread Size
3/4-16

Product Questions & Answers (1)

Question by: Melvin F on Sep 12, 2025, 3:05 PM
got a half inch JIC line on one side and a half inch JIC port on the other, is this the swivel that goes male to female?
Answer by: Customer Support on Sep 13, 2025, 6:48 PM
It is a steel swivel joint with SAE 37 degree (JIC) ends sized 0.5 inch on both sides, with one end male and the other end female.
