Danfoss / Eaton BARCO SWIV

Description & Features

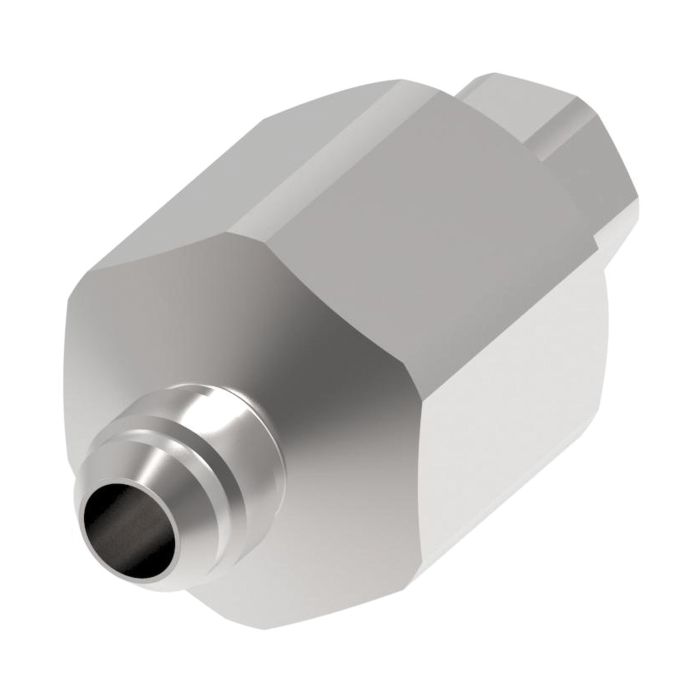

This steel Danfoss / Eaton BARCO SWIV is a complete swivel joint designed for diverse hydraulic applications. The swivel joint ensures reliable performance within a minimum working temperature of -20 degrees.

Featuring a male SAE 37 end and a female SAE 37 end, both with a size of 0.75 inches, this swivel joint offers versatile connection options. The second end features a 1.25-inch hex size for secure installation.

SKU: FS59006-1212-75

Supplier Part Number (MPN): FS59006-1212-75

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female JIC, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
Female SAE 37 deg JIC
Dimensions
3.88 in L
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
5000 psi
nmfc
50
Seal Material
Buna-N
Segment Code
C
Series
FS5900 Series
Thread Size
1-1/16-12

Similar Products

Model Number Connection Size 1 Connection Size 2 Connection Type Dimensions Price Action
Danfoss / Eaton HVY Duty Straight IND

FS59004-0404-01

1/4 in

1/4 in

FNPT, MNPT

3.23 in L

Danfoss / Eaton BARCO Swivel

FS59004-0606-75

3/8 in

3/8 in

FNPT, MNPT

3.62 in L

Danfoss / Eaton BARCO Swivel

FS59004-0808-75

1/2 in

1/2 in

FNPT, MNPT

3.97 in L

Danfoss / Eaton OLD# BD58000-12-01

FS59004-1212-75

3/4 in

3/4 in

FNPT, MNPT

4.04 in L

DANFOSS / EATON 1 MNPT X 1 FNPT SWV

FS59004-1616-75

1 in

1 in

FNPT, MNPT

4.57 in L

DANFOSS / EATON SWIVELS - CODE SW

FS59005-0608-75

3/4 in

1/2 in

FNPT, MPT

3.72 in L

DANFOSS / EATON SWIVELS - CODE SW

FS59006-0808-75

1/2 in

1/2 in

Female JIC, Male JIC

3.48 in L

DANFOSS / EATON SWIVELS - CODE SW

FS59006-1616-75

1 in

1 in

Female JIC, Male JIC

4.03 in L

Product Questions & Answers (1)

Question by: Wes R on Jun 22, 2025, 6:59 PM
Reckon this'll hold up okay in a hydraulic system running at, say, -10 degrees?
Answer by: Customer Support on Jun 24, 2025, 8:39 AM
The minimum working temperature for this swivel joint is -20 degrees, so it should handle -10 degrees without any problems.
