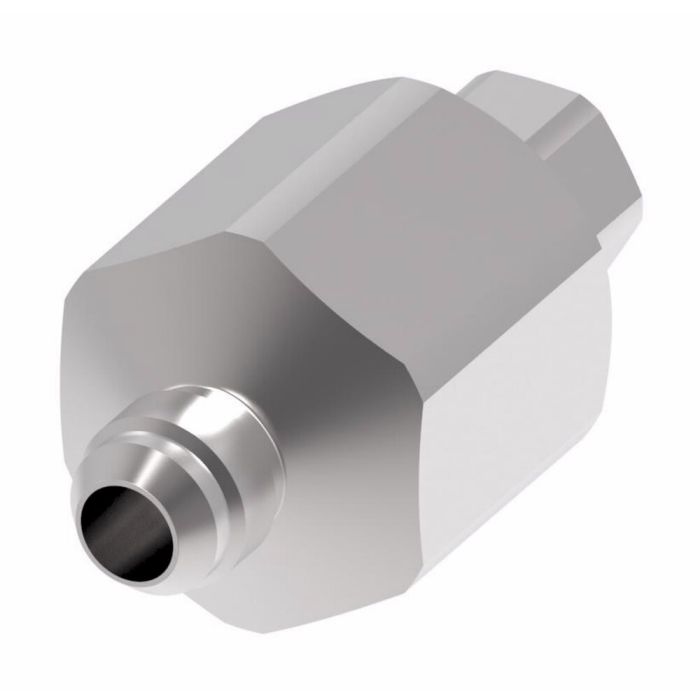

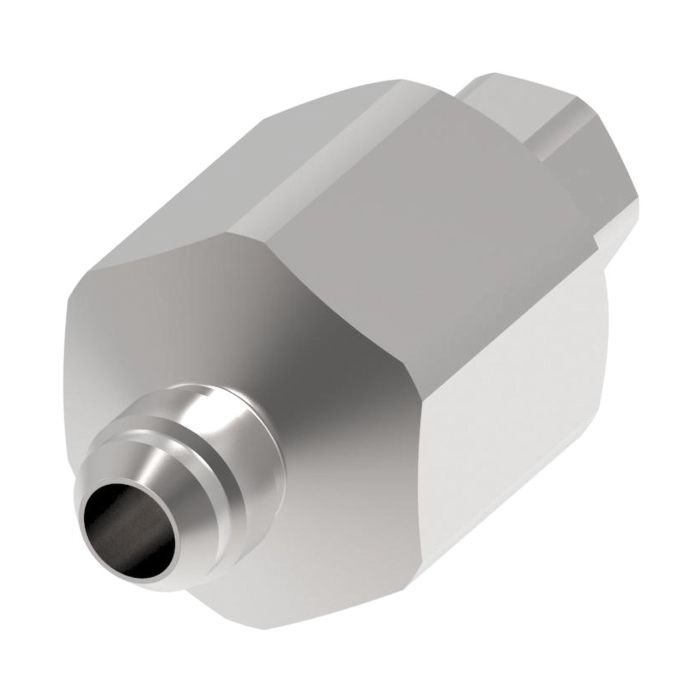

DANFOSS / EATON SWIVELS - CODE SW

Ask A Question

Description & Features

The DANFOSS / EATON SWIVELS - CODE SW feature steel construction for durability in demanding hydraulic applications. This swivel joint complete offers a working temperature range down to -20°F.

With SAE 37° male and female end connections, each measuring 1 inch, this swivel joint ensures secure and leak-free connections. The female end features a 1.5-inch hex size for easy installation. The swivel size is 1 inch.

SKU: FS59006-1616-75

Supplier Part Number (MPN): FS59006-1616-75

Alternate Part Numbers: C1GF11

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female JIC, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
Female SAE 37 deg JIC
Dimensions
4.03 in L
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Hydraulic Oil
Hex Size
2-1/2 in, 1-1/2 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
5000 psi
nmfc
50
Seal Material
Buna-N
Segment Code
C
Series
FS5900 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/16-12

Product Questions & Answers (1)

Question by: Tony C on Feb 13, 2026, 8:17 PM
Reckon this swivel would hold up okay in a hydraulic setup for some heavy equipment?
Answer by: Customer Support on Feb 14, 2026, 9:06 PM
Designed for durability in demanding hydraulic applications, the steel construction of this Danfoss/Eaton swivel joint should provide reliable service.
