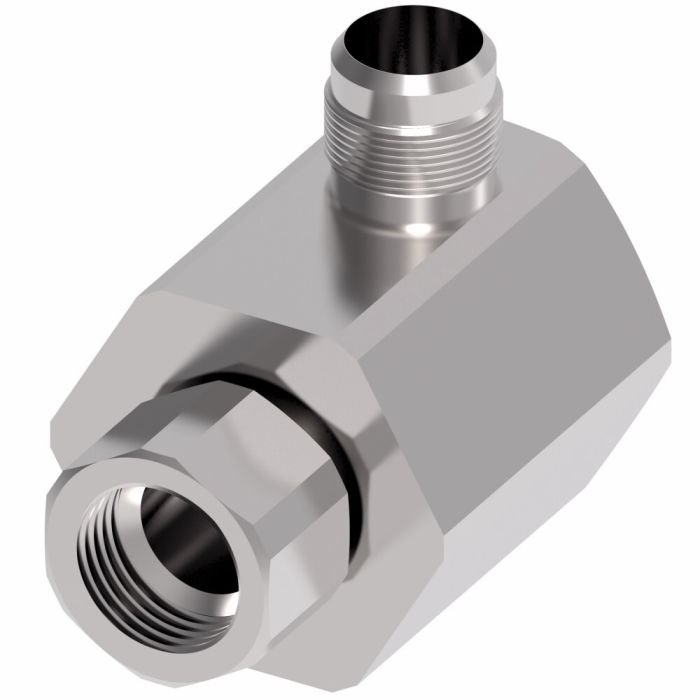

DANFOSS / EATON SWIVELS - CODE SW

Ask A Question

Description & Features

Designed for rotational flexibility in hydraulic lines, this 1-inch swivel joint from the Danfoss / Eaton FS5900 Series provides a reliable solution where continuous or intermittent rotation between connected components is required. Both ends feature SAE 37 (JIC) fittings, male on one end, female on the other, making it straightforward to integrate into standard hydraulic assemblies.

Constructed from steel, the Danfoss / Eaton Swivels - Code SW carries a minimum working temperature rating of -20°F, supporting use in cooler ambient environments. The 1-inch swivel size, 1.5-inch hex on the female end, and a 2.16-inch drop dimension provide the dimensional reference points needed for replacement or system layout planning. Weighing approximately 4.85 lb, this is a complete swivel joint assembly ready for installation.

SKU: FS59011-1616-75

Supplier Part Number (MPN): FS59011-1616-75

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female JIC, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
Female SAE 37 deg JIC
Dimensions
3.91 in L
Drop Dimensions
2.16 in
Finish
Zinc-Plated
Fitting Type
Swivel Joint
Fluid
Hydraulic Oil
Hex Size
2-1/2 in, 1-1/2 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
3000 psi
nmfc
50
Seal Material
Buna-N
Segment Code
C
Series
FS59011 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/16-12

Product Questions & Answers (1)

Question by: Kirk D on Mar 13, 2026, 9:30 PM
What’s the temperature range on this swivel? Gotta make sure it'll hold up in the shop during the winter.
Answer by: Customer Support on Mar 15, 2026, 4:50 PM
This swivel joint is rated down to -20°F, so it should be able to handle most shop conditions, even in the colder months.
