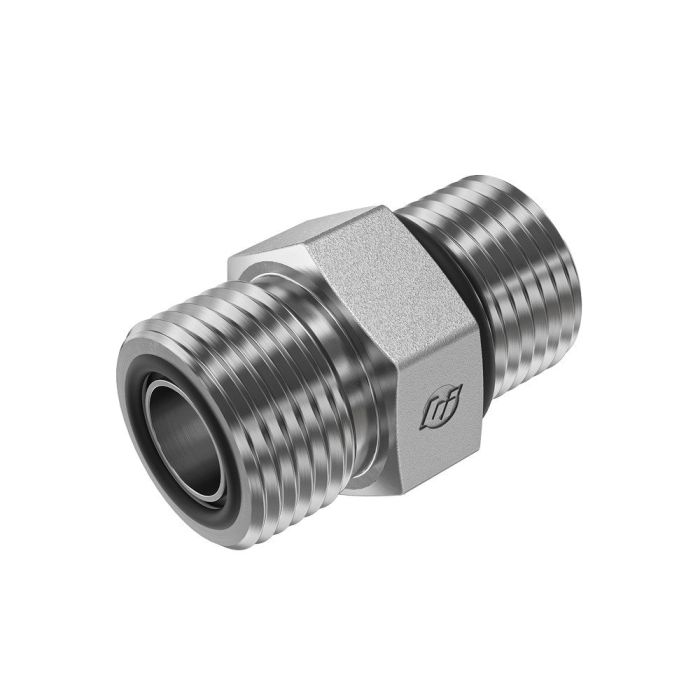

main product photo

04MFS-06MAORB STRAIGHT

Ask A Question

Description & Features

The 04MFS-06MAORB STRAIGHT by Brennan Industries Inc is meticulously engineered for industry-specific applications requiring precise component compatibility. With a 1/4" tube outside diameter this product is designed for robust performance and durability.

Key specifications include a drill dimension of 0.172 and a thread size of 9/16-18 on both ends ensuring a secure and reliable fit. The hex measurement stands at 0.750 and the length is optimized at 1.202 for seamless integration.

Forming part of the FS6400-O series this component delivers consistent quality and dependable functionality.

MPN: FS6400-04-06-O

Supplier Part Number: FS6400-04-06-O

Specifications

Brand
BRENNAN
a Drill Dimensions
0.172 in
b Drill Dimensions
0.264 in
Connection Size 1
1/4 in
Connection Size 2
3/8 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1453, SAE J1926
Dimensions
1.202 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
3/4 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Operating Temperature
-40 to 250 deg F
Series
FS6400-O Series
Thread Size
9/16-18
Tube OD
1/4 in
Tube Outside Diameter
1/4 in

Product Questions & Answers (1)

Question by: Diane C on May 21, 2025, 11:41 AM
i’ve got 1/4 tube and need a straight fitting, what size threads are on this one?
Answer by: Customer Support on May 22, 2025, 5:15 PM
Both ends are 9/16-18 thread, and it is built around a 1/4 inch tube outside diameter.
