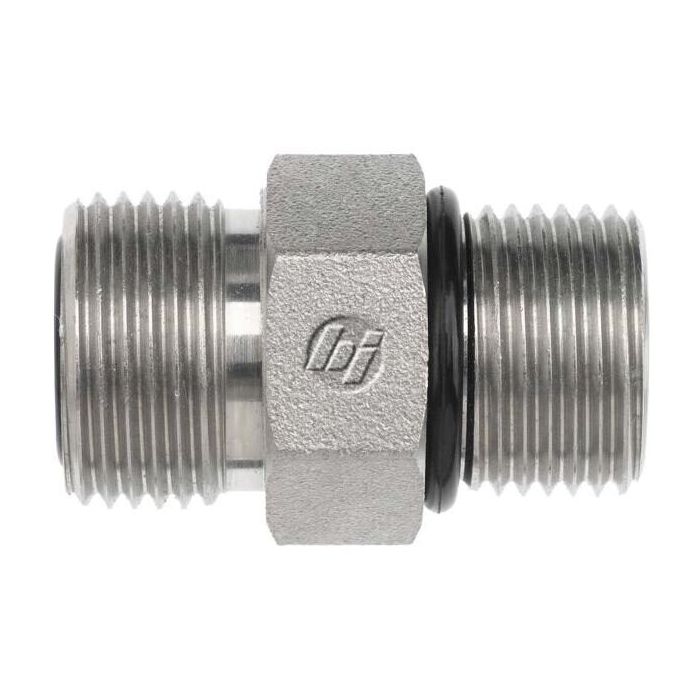

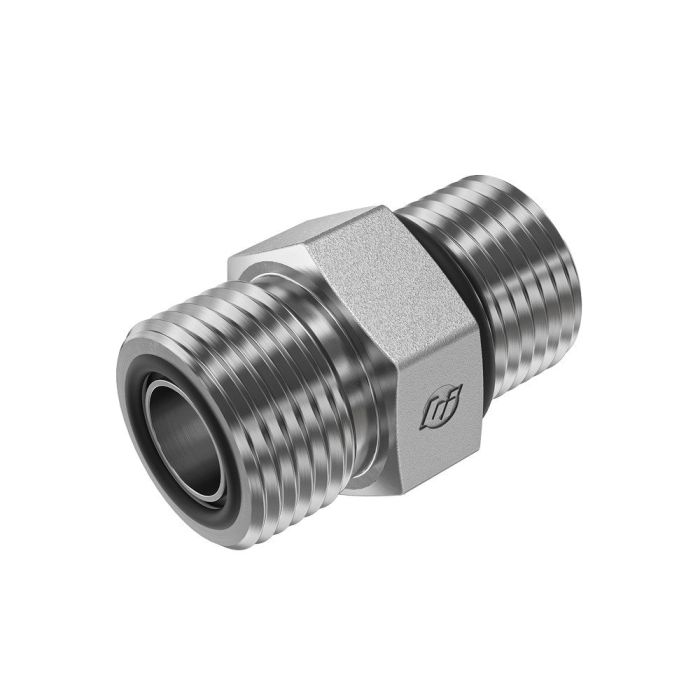

04MFS-08MAORB STRAIGHT

Description & Features

This adapter from Brennan Industries Inc is engineered to meet the high standards of reliability and durability required in industrial applications. With precise A and B thread measurements of 9/16-18 and 3/4-16 respectively the 04MFS-08MAORB Straight adapter is crafted for secure and efficient connections.

Designed with a hex dimension of 0.875 inches and an overall length of 1.321 inches this part provides robust support and long-lasting performance. This adapter part of the FS6400-O series ensures seamless integration within various systems making it an essential component for demanding projects. The 1/4 inch tube O.D. specification further enhances its compatibility with a range of setups.

Whether you are upgrading existing equipment or setting up new installations the 04MFS-08MAORB Straight adapter offers a reliable solution. Its straightforward configuration simplifies the installation process while its dimensions including a 0.172 inch A drill and a 0.378 inch B drill contribute to its accurate fit and function.

Supplier Part Number: FS6400-04-08-O

Specifications

Brand
BRENNAN
a Drill Dimensions
0.172 in
b Drill Dimensions
0.378 in
Connection Size 1
1/4 in
Connection Size 2
1/2 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1453, SAE J1926
Dimensions
1.321 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
7/8 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Operating Temperature
-40 to 250 deg F
Series
FS6400-O Series
Thread Size
3/4-16, 9/16-18
Tube OD
1/4 in
Tube Outside Diameter
1/4 in

Similar Products

Model Number Connection Size 1 Connection Type 1 Connection Size 2 Thread Size Price Action
06MFS-05MAORB STRAIGHT

FF6400-06-05

3/8 in

Male SAE ORFS

5/16 in

11/16-16 x 1/2-20

06MFS-10MAORB STRAIGHT

FF6400-06-10

3/8 in

Male SAE ORFS

5/8 in

11/16-16, 7/8-14

10MFS-10MAORB STRAIGHT

FF6400-10-10

5/8 in

Male SAE ORFS

5/8 in

1-14 x 1-14 x 7/8-14

12MFS-08MAORB STRAIGHT

FF6400-12-08

3/4 in

Male SAE ORFS

1/2 in

1-3/16-12, 3/4-16

04MFS-04MAORB STRAIGHT

FS6400-04-04-O

1/4 in

Male SAE ORFS

1/4 in

9/16-18, 7/16-20

04MFS-06MAORB STRAIGHT

FS6400-04-06-O

1/4 in

Male SAE ORFS

3/8 in

9/16-18

04MFS-10MAORB STRAIGHT

FS6400-04-10-O

1/4 in

Male SAE ORFS

5/8 in

7/8-14 x 9/16-18

04MFS-12MAORB STRAIGHT

FS6400-04-12-O

1/4 in

Male SAE ORFS

3/4 in

1-1/16-12 x 9/16-18

06MFS-04MAORB STRAIGHT

FS6400-06-04-O

3/8 in

Male SAE ORFS

1/4 in

11/16-16 x 7/16-20

06MFS-06MORB STRAIGHT

FS6400-06-06-O

3/8 in

Male SAE ORFS

3/8 in

11/16-16, 9/16-18

06MFS-08MAORB STRAIGHT

FS6400-06-08-O

3/8 in

Male SAE ORFS

1/2 in

11/16-16 x 3/4-16

08MFS-06MAORB STRAIGHT

FS6400-08-06-O

1/2 in

Male SAE ORFS

3/8 in

13/16-16 x 9/16-18 x 13/16-16

08MFS-08MAORB STRAIGHT

FS6400-08-08-O

1/2 in

Male SAE ORFS

1/2 in

13/16-16 x 3/4-16

08MFS-10MAORB STRAIGHT

FS6400-08-10-O

1/2 in

Male SAE ORFS

5/8 in

13/16-16 x 7/8-14

08MFS-16MAORB STRAIGHT

FS6400-08-16-O

1/2 in

Male SAE ORFS

1 in

13/16-16, 1-5/16-12

10MFS-12MAORB STRAIGHT

FS6400-10-12-O

5/8 in

Male SAE ORFS

3/4 in

1-14 x 1-1/16-12

Brennan 10MFS-16MORB STRAIGHT

FS6400-10-16-O

5/8 in

Male SAE ORFS

1 in

1-14 x 1-14 x 7/8-14

FS6400-12-10-O

FS6400-12-10-O

3/4 in

Male SAE ORFS

5/8 in

1-3/16-12, 7/8-14

12MFS-12MAORB STRAIGHT

FS6400-12-12-O

3/4 in

Male SAE ORFS

3/4 in

1-3/16-16 x 1-1/16-12

12MFS-16MAORB STRAIGHT

FS6400-12-16-O

3/4 in

Male SAE ORFS

1 in

1-3/16-12 x 1-5/16-12

12MFS-20MAORB STRAIGHT

FS6400-12-20-O

3/4 in

Male SAE ORFS

1-1/4 in

1-3/16-12 x 1-5/8-12

FS6400-16-08-O

FS6400-16-08-O

1 in

Male SAE ORFS

1/2 in

1-7/16-12, 3/4-16

16MFS-12MAORB STRAIGHT

FS6400-16-12-O

1 in

Male SAE ORFS

3/4 in

1-7/16-12 x 1-1/16-12

16MFS-20MAORB STRAIGHT

FS6400-16-20-O

1 in

Male SAE ORFS

1-1/4 in

1-7/16-12, 1-5/8-12

16MFS-24MAORB STRAIGHT

FS6400-16-24-O

1 in

Male SAE ORFS

1-1/2 in

1-7/16-12 x 1-7/8-12

Steel Adapter, 1-11/16-12 Male SAE O-Ring Face Seal To 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FS6400-20-20-O Steel Male ORS To ORB Adapter

1-1/4 in

Male ORFS

1-1/4 in

1-11/16-12, 1-5/8-12

20MFS-24MAORB STRAIGHT

FS6400-20-24-O

1-1/4 in

Male SAE ORFS

1-1/2 in

1-11/16-12, 1-7/8-12

24MFS-20MAORB STRAIGHT

FS6400-24-20-O

1-1/2 in

Male SAE ORFS

1-1/4 in

2-12, 1-5/8-12

24MFS-24MAORB STRAIGHT

FS6400-24-24-O

1-1/2 in

Male SAE ORFS

1-1/2 in

2-12 x 1-7/8-12

Product Questions & Answers (3)

Question by: Shane H on Oct 29, 2025, 3:33 PM
trying to match up a straight adapter i’ve got here, what are the thread sizes on the A and B ends for this one
Answer by: Customer Support on Oct 30, 2025, 6:40 PM
For fit-up, the A thread is 9/16-18 and the B thread is 3/4-16.
Question by: Dwayne G on Dec 7, 2025, 9:49 AM
What size is the tube that this adapter fits?
Answer by: Customer Support on Dec 8, 2025, 7:23 PM
This adapter is made for a 1/4 inch outside diameter tube.
Question by: Vince B on Mar 29, 2026, 9:10 PM
does the 1/4 inch tube O.D. on this thing mean it'll hook straight up to standard 1/4 inch tubing, or is there more to fittin it right?
Answer by: Customer Support on Mar 31, 2026, 6:34 PM
For a 1/4 inch O.D. tube connection, this adapter is built to accommodate exactly that size. The A thread is 9/16-18 and the B thread is 3/4-16, so the tube side and the port side each have their own thread spec. As long as your tubing matches the 1/4 inch O.D. and your port is a 3/4-16 ORB, the fit should be straightforward with no extra adapters needed in between.
