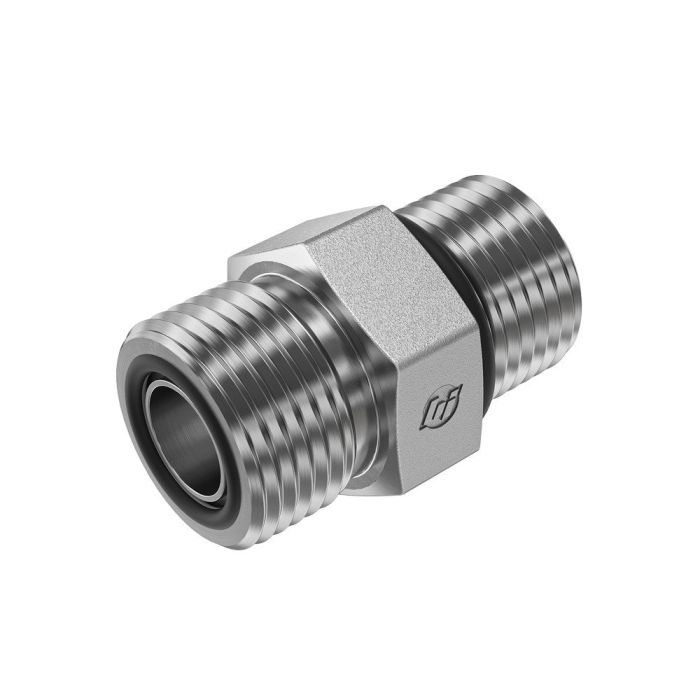

04MFS-10MAORB STRAIGHT

Description & Features

The 04MFS-10MAORB Straight fitting by Brennan Industries is expertly crafted to meet the rigorous demands of industrial applications. Designed with precision, it features a 9/16-18 thread on side A and a 7/8-14 thread on side B, providing robust connection capabilities. This fitting is ideal for use in hydraulic systems where secure and reliable connections are essential. Its construction accommodates a tube outer diameter of 1/4 inch, ensuring compatibility with a range of tubing sizes.

Manufactured as part of the FS6400-O series, this fitting combines functionality with durability, featuring a 1.000-inch hex size for ease of installation and maintenance. With a length of 1.480 inches, it offers a compact solution without compromising performance. Trust the quality and expertise of Brennan Industries for your industrial component needs.

SKU: FS6400-04-10-O

Supplier Part Number (MPN): FS6400-04-10-O

Specifications

Brand
BRENNAN
a Drill Dimensions
0.172 in
b Drill Dimensions
0.484 in
Connection Size 1
1/4 in
Connection Size 2
5/8 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1453, SAE J1926
Dimensions
1.48 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1 x 1 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6400-O Series
Thread Size
7/8-14 x 9/16-18
Tube OD
1/4 in
Tube Outside Diameter
1/4 in

Similar Products

Model Number Connection Size 1 Connection Type 1 Connection Size 2 Thread Size Price Action
06MFS-05MAORB STRAIGHT

FF6400-06-05

3/8 in

Male SAE ORFS

5/16 in

11/16-16 x 1/2-20

06MFS-10MAORB STRAIGHT

FF6400-06-10

3/8 in

Male SAE ORFS

5/8 in

11/16-16, 7/8-14

10MFS-10MAORB STRAIGHT

FF6400-10-10

5/8 in

Male SAE ORFS

5/8 in

1-14 x 1-14 x 7/8-14

12MFS-08MAORB STRAIGHT

FF6400-12-08

3/4 in

Male SAE ORFS

1/2 in

1-3/16-12, 3/4-16

04MFS-04MAORB STRAIGHT

FS6400-04-04-O

1/4 in

Male SAE ORFS

1/4 in

9/16-18, 7/16-20

04MFS-06MAORB STRAIGHT

FS6400-04-06-O

1/4 in

Male SAE ORFS

3/8 in

9/16-18

04MFS-08MAORB STRAIGHT

FS6400-04-08-O

1/4 in

Male SAE ORFS

1/2 in

3/4-16, 9/16-18

04MFS-12MAORB STRAIGHT

FS6400-04-12-O

1/4 in

Male SAE ORFS

3/4 in

1-1/16-12 x 9/16-18

06MFS-04MAORB STRAIGHT

FS6400-06-04-O

3/8 in

Male SAE ORFS

1/4 in

11/16-16 x 7/16-20

06MFS-06MORB STRAIGHT

FS6400-06-06-O

3/8 in

Male SAE ORFS

3/8 in

11/16-16, 9/16-18

06MFS-08MAORB STRAIGHT

FS6400-06-08-O

3/8 in

Male SAE ORFS

1/2 in

11/16-16 x 3/4-16

08MFS-06MAORB STRAIGHT

FS6400-08-06-O

1/2 in

Male SAE ORFS

3/8 in

13/16-16 x 9/16-18 x 13/16-16

08MFS-08MAORB STRAIGHT

FS6400-08-08-O

1/2 in

Male SAE ORFS

1/2 in

13/16-16 x 3/4-16

08MFS-10MAORB STRAIGHT

FS6400-08-10-O

1/2 in

Male SAE ORFS

5/8 in

13/16-16 x 7/8-14

08MFS-16MAORB STRAIGHT

FS6400-08-16-O

1/2 in

Male SAE ORFS

1 in

13/16-16, 1-5/16-12

10MFS-12MAORB STRAIGHT

FS6400-10-12-O

5/8 in

Male SAE ORFS

3/4 in

1-14 x 1-1/16-12

Brennan 10MFS-16MORB STRAIGHT

FS6400-10-16-O

5/8 in

Male SAE ORFS

1 in

1-14 x 1-14 x 7/8-14

FS6400-12-10-O

FS6400-12-10-O

3/4 in

Male SAE ORFS

5/8 in

1-3/16-12, 7/8-14

12MFS-12MAORB STRAIGHT

FS6400-12-12-O

3/4 in

Male SAE ORFS

3/4 in

1-3/16-16 x 1-1/16-12

12MFS-16MAORB STRAIGHT

FS6400-12-16-O

3/4 in

Male SAE ORFS

1 in

1-3/16-12 x 1-5/16-12

12MFS-20MAORB STRAIGHT

FS6400-12-20-O

3/4 in

Male SAE ORFS

1-1/4 in

1-3/16-12 x 1-5/8-12

FS6400-16-08-O

FS6400-16-08-O

1 in

Male SAE ORFS

1/2 in

1-7/16-12, 3/4-16

16MFS-12MAORB STRAIGHT

FS6400-16-12-O

1 in

Male SAE ORFS

3/4 in

1-7/16-12 x 1-1/16-12

16MFS-20MAORB STRAIGHT

FS6400-16-20-O

1 in

Male SAE ORFS

1-1/4 in

1-7/16-12, 1-5/8-12

16MFS-24MAORB STRAIGHT

FS6400-16-24-O

1 in

Male SAE ORFS

1-1/2 in

1-7/16-12 x 1-7/8-12

Steel Adapter, 1-11/16-12 Male SAE O-Ring Face Seal To 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FS6400-20-20-O Steel Male ORS To ORB Adapter

1-1/4 in

Male ORFS

1-1/4 in

1-11/16-12, 1-5/8-12

20MFS-24MAORB STRAIGHT

FS6400-20-24-O

1-1/4 in

Male SAE ORFS

1-1/2 in

1-11/16-12, 1-7/8-12

24MFS-20MAORB STRAIGHT

FS6400-24-20-O

1-1/2 in

Male SAE ORFS

1-1/4 in

2-12, 1-5/8-12

24MFS-24MAORB STRAIGHT

FS6400-24-24-O

1-1/2 in

Male SAE ORFS

1-1/2 in

2-12 x 1-7/8-12

Product Questions & Answers (1)

Question by: Dwight C on May 26, 2025, 12:35 PM
Reckon this fittin'll hold up in a hydraulic system for farm equipment?
Answer by: Customer Support on May 28, 2025, 8:23 AM
Designed for demanding industrial applications, this fitting should be suitable for farm equipment hydraulic systems, provided the 1/4 inch tube OD is compatible.
