06MFS-06MAORB STRAIGHT

Ask A Question

Description & Features

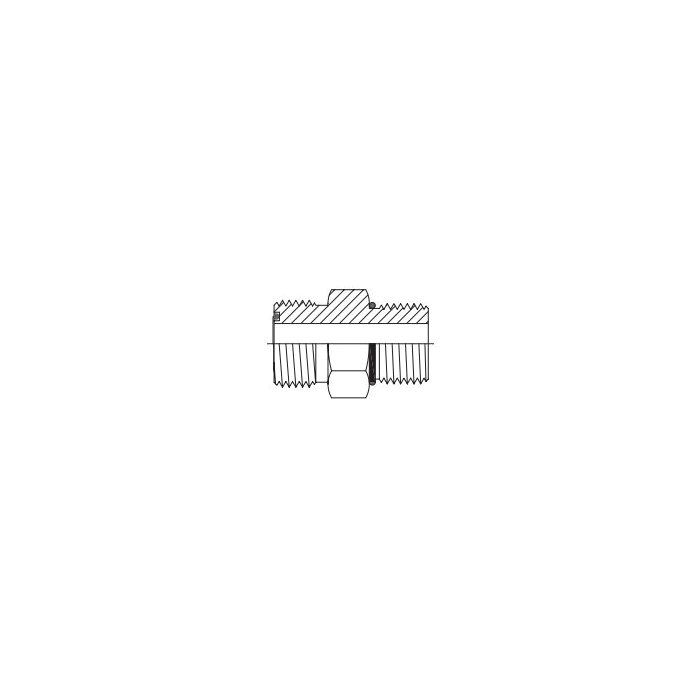

This straight adapter fitting features a 06MFS to 06MAORB connection.

The 06MFS-06MAORB STRAIGHT adapter is manufactured by Brennan Industries.

SKU: FS6400-06-06-O-R.094

Supplier Part Number (MPN): FS6400-06-06-O-R.094

Specifications

Brand BRENNAN	Additional Information Nitrile Seal, 0.094 in Orifice	Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Male ORFS	Connection Type 1 Male ORFS	Connection Type 2 Male ORFS	Dimension Standards SAE J1453, SAE J1926	Dimensions 1.26 in L	Finish Zinc Trivalent	Fitting Type Adapter	Hex Size 3/4 in	Material Steel	Material Construction AISI 12L14/C1045 Steel	Operating Temperature -40 to 250 deg F	Series FS6400-O Series	Thread Size 11/16-16, 9/16-18

Product Questions & Answers (1)

Question by: Rod J on Aug 3, 2025, 1:46 PM

What exactly does "06MFS to 06MAORB connection" mean? Just wanna be sure it's what I need.

Answer by: Customer Support on Aug 4, 2025, 8:26 PM

In this case, 06MFS refers to a 9/16-18 Male Fuel Swivel connection, while 06MAORB indicates a 9/16-18 Male Adjustable O-Ring Boss connection. So, this adapter connects those two fitting types.
