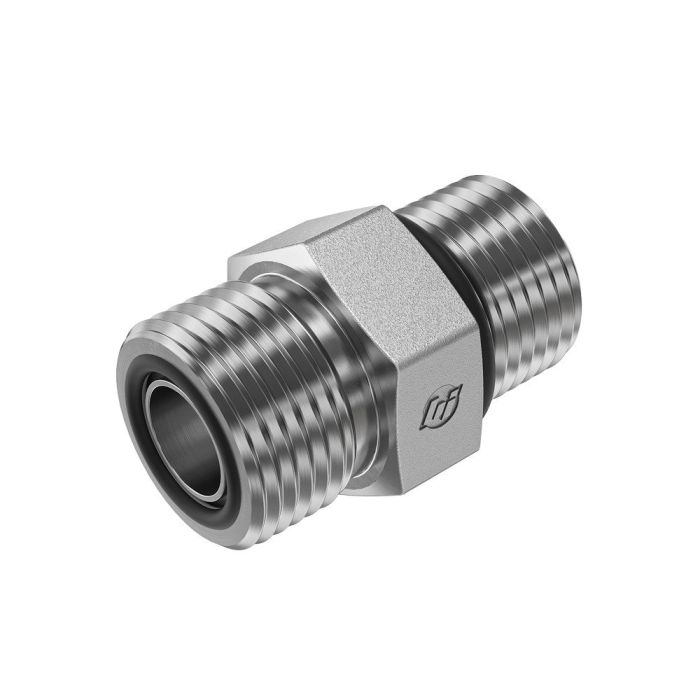

06MFS-06MORB STRAIGHT

Description & Features

Precision-engineered by Brennan Industries Inc the 06MFS-06MORB Straight adapter is a reliable solution designed specifically for industries requiring durable and efficient connections.

Featuring an 11/16-16 A thread and a 9/16-18 B thread this adapter ensures a secure fit with maximum performance. The 0.256 drill size for both A and B ensures compatibility with a variety of connections.

With a hex size of 0.750 and overall length of 1.260 this adapter is compact yet robust suitable for various industrial applications. The 3/8 tube O.D. further enhances its versatility in system integration.

Brand: Brennan Industries Inc

Supplier Part Number: FS6400-06-06-O

Specifications

Brand
BRENNAN
a Drill Dimensions
0.256 in
b Drill Dimensions
0.256 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1453, SAE J1926
Dimensions
1.26 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
3/4 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Operating Temperature
-40 to 250 deg F
Series
FS6400-O Series
Thread Size
11/16-16, 9/16-18
Tube OD
3/8 in
Tube Outside Diameter
0.38 in

Similar Products

Model Number Connection Size 1 Connection Type 1 Connection Size 2 Thread Size Price Action
06MFS-05MAORB STRAIGHT

FF6400-06-05

3/8 in

Male SAE ORFS

5/16 in

11/16-16 x 1/2-20

06MFS-10MAORB STRAIGHT

FF6400-06-10

3/8 in

Male SAE ORFS

5/8 in

11/16-16, 7/8-14

10MFS-10MAORB STRAIGHT

FF6400-10-10

5/8 in

Male SAE ORFS

5/8 in

1-14 x 1-14 x 7/8-14

12MFS-08MAORB STRAIGHT

FF6400-12-08

3/4 in

Male SAE ORFS

1/2 in

1-3/16-12, 3/4-16

04MFS-04MAORB STRAIGHT

FS6400-04-04-O

1/4 in

Male SAE ORFS

1/4 in

9/16-18, 7/16-20

04MFS-06MAORB STRAIGHT

FS6400-04-06-O

1/4 in

Male SAE ORFS

3/8 in

9/16-18

04MFS-08MAORB STRAIGHT

FS6400-04-08-O

1/4 in

Male SAE ORFS

1/2 in

3/4-16, 9/16-18

04MFS-10MAORB STRAIGHT

FS6400-04-10-O

1/4 in

Male SAE ORFS

5/8 in

7/8-14 x 9/16-18

04MFS-12MAORB STRAIGHT

FS6400-04-12-O

1/4 in

Male SAE ORFS

3/4 in

1-1/16-12 x 9/16-18

06MFS-04MAORB STRAIGHT

FS6400-06-04-O

3/8 in

Male SAE ORFS

1/4 in

11/16-16 x 7/16-20

06MFS-08MAORB STRAIGHT

FS6400-06-08-O

3/8 in

Male SAE ORFS

1/2 in

11/16-16 x 3/4-16

08MFS-06MAORB STRAIGHT

FS6400-08-06-O

1/2 in

Male SAE ORFS

3/8 in

13/16-16 x 9/16-18 x 13/16-16

08MFS-08MAORB STRAIGHT

FS6400-08-08-O

1/2 in

Male SAE ORFS

1/2 in

13/16-16 x 3/4-16

08MFS-10MAORB STRAIGHT

FS6400-08-10-O

1/2 in

Male SAE ORFS

5/8 in

13/16-16 x 7/8-14

08MFS-16MAORB STRAIGHT

FS6400-08-16-O

1/2 in

Male SAE ORFS

1 in

13/16-16, 1-5/16-12

10MFS-12MAORB STRAIGHT

FS6400-10-12-O

5/8 in

Male SAE ORFS

3/4 in

1-14 x 1-1/16-12

Brennan 10MFS-16MORB STRAIGHT

FS6400-10-16-O

5/8 in

Male SAE ORFS

1 in

1-14 x 1-14 x 7/8-14

FS6400-12-10-O

FS6400-12-10-O

3/4 in

Male SAE ORFS

5/8 in

1-3/16-12, 7/8-14

12MFS-12MAORB STRAIGHT

FS6400-12-12-O

3/4 in

Male SAE ORFS

3/4 in

1-3/16-16 x 1-1/16-12

12MFS-16MAORB STRAIGHT

FS6400-12-16-O

3/4 in

Male SAE ORFS

1 in

1-3/16-12 x 1-5/16-12

12MFS-20MAORB STRAIGHT

FS6400-12-20-O

3/4 in

Male SAE ORFS

1-1/4 in

1-3/16-12 x 1-5/8-12

FS6400-16-08-O

FS6400-16-08-O

1 in

Male SAE ORFS

1/2 in

1-7/16-12, 3/4-16

16MFS-12MAORB STRAIGHT

FS6400-16-12-O

1 in

Male SAE ORFS

3/4 in

1-7/16-12 x 1-1/16-12

16MFS-20MAORB STRAIGHT

FS6400-16-20-O

1 in

Male SAE ORFS

1-1/4 in

1-7/16-12, 1-5/8-12

16MFS-24MAORB STRAIGHT

FS6400-16-24-O

1 in

Male SAE ORFS

1-1/2 in

1-7/16-12 x 1-7/8-12

Steel Adapter, 1-11/16-12 Male SAE O-Ring Face Seal To 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FS6400-20-20-O Steel Male ORS To ORB Adapter

1-1/4 in

Male ORFS

1-1/4 in

1-11/16-12, 1-5/8-12

20MFS-24MAORB STRAIGHT

FS6400-20-24-O

1-1/4 in

Male SAE ORFS

1-1/2 in

1-11/16-12, 1-7/8-12

24MFS-20MAORB STRAIGHT

FS6400-24-20-O

1-1/2 in

Male SAE ORFS

1-1/4 in

2-12, 1-5/8-12

24MFS-24MAORB STRAIGHT

FS6400-24-24-O

1-1/2 in

Male SAE ORFS

1-1/2 in

2-12 x 1-7/8-12

Product Questions & Answers (3)

Question by: Cody M on May 21, 2025, 7:52 PM
Hey, will this here adapter work with a 3/8" tube?
Answer by: Customer Support on May 23, 2025, 10:12 AM
this adapter's made for a 3/8" tube O.D., so you should be good to go.
Question by: Brett G on Apr 20, 2025, 7:41 PM
what size tube does this adapter work with, and will it fit standard 3/8 fittings I already got on my system?
Answer by: Customer Support on Apr 22, 2025, 7:49 AM
The 3/8 inch tube O.D. is what this one's built around, so if your existing connections are running 3/8 tube, you're in good shape. The A thread is 11/16-16 and the B thread is 9/16-18, so just make sure those thread sizes line up with what you've got on both ends before you order.
Question by: Curt F on Oct 23, 2025, 5:39 PM
trying to swap out an old straight adapter, are the thread sizes on this one 11/16-16 on one end and 9/16-18 on the other?
Answer by: Customer Support on Oct 25, 2025, 7:27 AM
The A end is 11/16-16 thread and the B end is 9/16-18 thread. Both sides are listed with a 0.256 drill size.
