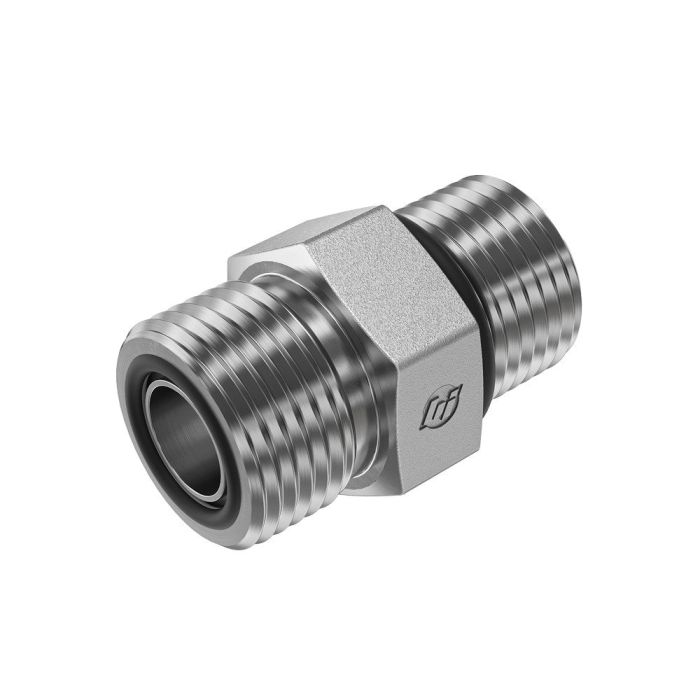

06MFS-08MAORB STRAIGHT

Description & Features

Manufactured by Brennan Industries Inc this high-quality adapter is designed to meet the demanding specifications of modern industrial applications. Featuring a 3/8 inch tube outer diameter the 06MFS-08MAORB STRAIGHT ensures compatibility with various systems.

With an overall length of 1.381 inches and a hex size of 0.875 inches the adapter offers robust performance and reliability. The product includes an 11/16-16 thread on side A and a 3/4-16 thread on side B making it versatile for a range of connections.

Series FS6400-O provides optimal durability and efficiency. The meticulously crafted drill holes of 0.264 inches on both ends enhance the product's compatibility and functionality in critical applications.

Supplier Part Number: FS6400-06-08-O

Specifications

Brand
BRENNAN
a Drill Dimensions
0.264 in
b Drill Dimensions
0.264 in
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1453, SAE J1926
Dimensions
1.381 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
7/8 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Operating Temperature
-40 to 250 deg F
Series
FS6400-O Series
Thread Size
11/16-16 x 3/4-16
Tube OD
3/8 in
Tube Outside Diameter
0.38 in

Similar Products

Model Number Connection Size 1 Connection Type 1 Connection Size 2 Thread Size Price Action
06MFS-05MAORB STRAIGHT

FF6400-06-05

3/8 in

Male SAE ORFS

5/16 in

11/16-16 x 1/2-20

06MFS-10MAORB STRAIGHT

FF6400-06-10

3/8 in

Male SAE ORFS

5/8 in

11/16-16, 7/8-14

10MFS-10MAORB STRAIGHT

FF6400-10-10

5/8 in

Male SAE ORFS

5/8 in

1-14 x 1-14 x 7/8-14

12MFS-08MAORB STRAIGHT

FF6400-12-08

3/4 in

Male SAE ORFS

1/2 in

1-3/16-12, 3/4-16

04MFS-04MAORB STRAIGHT

FS6400-04-04-O

1/4 in

Male SAE ORFS

1/4 in

9/16-18, 7/16-20

04MFS-06MAORB STRAIGHT

FS6400-04-06-O

1/4 in

Male SAE ORFS

3/8 in

9/16-18

04MFS-08MAORB STRAIGHT

FS6400-04-08-O

1/4 in

Male SAE ORFS

1/2 in

3/4-16, 9/16-18

04MFS-10MAORB STRAIGHT

FS6400-04-10-O

1/4 in

Male SAE ORFS

5/8 in

7/8-14 x 9/16-18

04MFS-12MAORB STRAIGHT

FS6400-04-12-O

1/4 in

Male SAE ORFS

3/4 in

1-1/16-12 x 9/16-18

06MFS-04MAORB STRAIGHT

FS6400-06-04-O

3/8 in

Male SAE ORFS

1/4 in

11/16-16 x 7/16-20

06MFS-06MORB STRAIGHT

FS6400-06-06-O

3/8 in

Male SAE ORFS

3/8 in

11/16-16, 9/16-18

08MFS-06MAORB STRAIGHT

FS6400-08-06-O

1/2 in

Male SAE ORFS

3/8 in

13/16-16 x 9/16-18 x 13/16-16

08MFS-08MAORB STRAIGHT

FS6400-08-08-O

1/2 in

Male SAE ORFS

1/2 in

13/16-16 x 3/4-16

08MFS-10MAORB STRAIGHT

FS6400-08-10-O

1/2 in

Male SAE ORFS

5/8 in

13/16-16 x 7/8-14

08MFS-16MAORB STRAIGHT

FS6400-08-16-O

1/2 in

Male SAE ORFS

1 in

13/16-16, 1-5/16-12

10MFS-12MAORB STRAIGHT

FS6400-10-12-O

5/8 in

Male SAE ORFS

3/4 in

1-14 x 1-1/16-12

Brennan 10MFS-16MORB STRAIGHT

FS6400-10-16-O

5/8 in

Male SAE ORFS

1 in

1-14 x 1-14 x 7/8-14

FS6400-12-10-O

FS6400-12-10-O

3/4 in

Male SAE ORFS

5/8 in

1-3/16-12, 7/8-14

12MFS-12MAORB STRAIGHT

FS6400-12-12-O

3/4 in

Male SAE ORFS

3/4 in

1-3/16-16 x 1-1/16-12

12MFS-16MAORB STRAIGHT

FS6400-12-16-O

3/4 in

Male SAE ORFS

1 in

1-3/16-12 x 1-5/16-12

12MFS-20MAORB STRAIGHT

FS6400-12-20-O

3/4 in

Male SAE ORFS

1-1/4 in

1-3/16-12 x 1-5/8-12

FS6400-16-08-O

FS6400-16-08-O

1 in

Male SAE ORFS

1/2 in

1-7/16-12, 3/4-16

16MFS-12MAORB STRAIGHT

FS6400-16-12-O

1 in

Male SAE ORFS

3/4 in

1-7/16-12 x 1-1/16-12

16MFS-20MAORB STRAIGHT

FS6400-16-20-O

1 in

Male SAE ORFS

1-1/4 in

1-7/16-12, 1-5/8-12

16MFS-24MAORB STRAIGHT

FS6400-16-24-O

1 in

Male SAE ORFS

1-1/2 in

1-7/16-12 x 1-7/8-12

Steel Adapter, 1-11/16-12 Male SAE O-Ring Face Seal To 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FS6400-20-20-O Steel Male ORS To ORB Adapter

1-1/4 in

Male ORFS

1-1/4 in

1-11/16-12, 1-5/8-12

20MFS-24MAORB STRAIGHT

FS6400-20-24-O

1-1/4 in

Male SAE ORFS

1-1/2 in

1-11/16-12, 1-7/8-12

24MFS-20MAORB STRAIGHT

FS6400-24-20-O

1-1/2 in

Male SAE ORFS

1-1/4 in

2-12, 1-5/8-12

24MFS-24MAORB STRAIGHT

FS6400-24-24-O

1-1/2 in

Male SAE ORFS

1-1/2 in

2-12 x 1-7/8-12

Product Questions & Answers (3)

Question by: Donna A on Nov 16, 2025, 10:07 AM
what's the tube OD on this adapter and does it work with a 3/4-16 thread on one end?
Answer by: Customer Support on Nov 18, 2025, 6:00 AM
you got it right on both counts. The tube outer diameter is 3/8 inch, and one end does run a 3/4-16 thread. The other end carries an 11/16-16 thread, so make sure both sides line up with what you're connecting to before you order.
Question by: Duane H on Jan 14, 2026, 7:24 AM
got an old Brennan fitting marked FS6400-06-08-O, is this the same straight adapter or am i mixing it up
Answer by: Customer Support on Jan 16, 2026, 6:12 AM
Match the supplier part number and you are on the right one. This adapter’s supplier part number is FS6400-06-08-O, and it’s a straight style in the Brennan FS6400-O series.
Question by: Terry M on May 7, 2025, 6:36 AM
Will this fitting work with a 3/8" OD tube, or do I need a different size?
Answer by: Customer Support on May 9, 2025, 6:46 AM
This adapter is designed for use with a 3/8 inch outer diameter tube, according to the product specifications.
