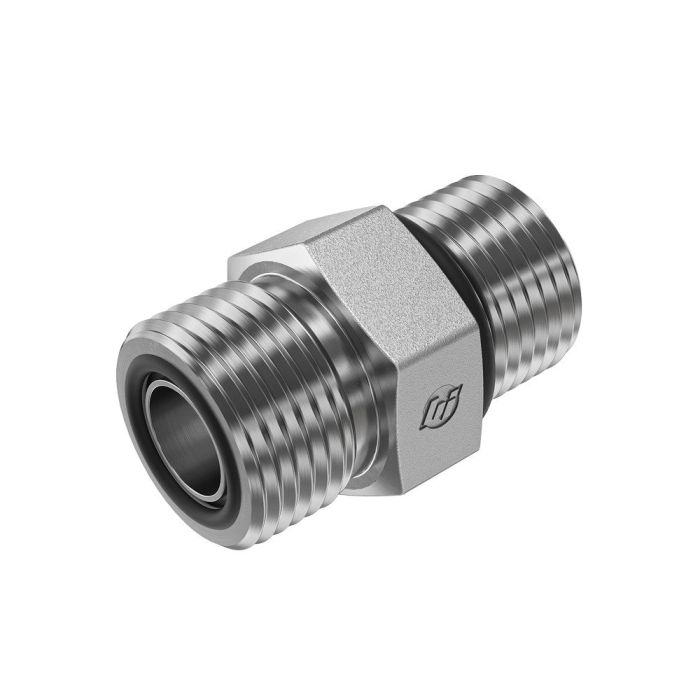

08MFS-10MAORB STRAIGHT

Description & Features

This adapter from Brennan Industries Inc. series FS6400-O ensures robust performance in industrial applications. The component features a precise Hex size of 1.062 and a length of 1.590 making installation straightforward and secure.

Engineered with a Tube O.D. of 1/2 this piece is crafted to meet demanding requirements. It is equipped with A Drill and B Drill dimensions of 0.378 allowing for accurate and secure connections.

The adapter includes a 13/16-16 A Thread and a 7/8-14 B Thread providing compatibility with a variety of setups. It promises durability and consistency in performance.

Supplier Part Number: FS6400-08-10-O

Specifications

Brand
BRENNAN
a Drill Dimensions
0.378 in
b Drill Dimensions
0.378 in
Connection Size 1
1/2 in
Connection Size 2
5/8 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1453, SAE J1926
Dimensions
1.59 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1.06 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6400-O Series
Thread Size
13/16-16 x 7/8-14
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Similar Products

Model Number Connection Size 1 Connection Type 1 Connection Size 2 Thread Size Price Action
06MFS-05MAORB STRAIGHT

FF6400-06-05

3/8 in

Male SAE ORFS

5/16 in

11/16-16 x 1/2-20

06MFS-10MAORB STRAIGHT

FF6400-06-10

3/8 in

Male SAE ORFS

5/8 in

11/16-16, 7/8-14

10MFS-10MAORB STRAIGHT

FF6400-10-10

5/8 in

Male SAE ORFS

5/8 in

1-14 x 1-14 x 7/8-14

12MFS-08MAORB STRAIGHT

FF6400-12-08

3/4 in

Male SAE ORFS

1/2 in

1-3/16-12, 3/4-16

04MFS-04MAORB STRAIGHT

FS6400-04-04-O

1/4 in

Male SAE ORFS

1/4 in

9/16-18, 7/16-20

04MFS-06MAORB STRAIGHT

FS6400-04-06-O

1/4 in

Male SAE ORFS

3/8 in

9/16-18

04MFS-08MAORB STRAIGHT

FS6400-04-08-O

1/4 in

Male SAE ORFS

1/2 in

3/4-16, 9/16-18

04MFS-10MAORB STRAIGHT

FS6400-04-10-O

1/4 in

Male SAE ORFS

5/8 in

7/8-14 x 9/16-18

04MFS-12MAORB STRAIGHT

FS6400-04-12-O

1/4 in

Male SAE ORFS

3/4 in

1-1/16-12 x 9/16-18

06MFS-04MAORB STRAIGHT

FS6400-06-04-O

3/8 in

Male SAE ORFS

1/4 in

11/16-16 x 7/16-20

06MFS-06MORB STRAIGHT

FS6400-06-06-O

3/8 in

Male SAE ORFS

3/8 in

11/16-16, 9/16-18

06MFS-08MAORB STRAIGHT

FS6400-06-08-O

3/8 in

Male SAE ORFS

1/2 in

11/16-16 x 3/4-16

08MFS-06MAORB STRAIGHT

FS6400-08-06-O

1/2 in

Male SAE ORFS

3/8 in

13/16-16 x 9/16-18 x 13/16-16

08MFS-08MAORB STRAIGHT

FS6400-08-08-O

1/2 in

Male SAE ORFS

1/2 in

13/16-16 x 3/4-16

08MFS-16MAORB STRAIGHT

FS6400-08-16-O

1/2 in

Male SAE ORFS

1 in

13/16-16, 1-5/16-12

10MFS-12MAORB STRAIGHT

FS6400-10-12-O

5/8 in

Male SAE ORFS

3/4 in

1-14 x 1-1/16-12

Brennan 10MFS-16MORB STRAIGHT

FS6400-10-16-O

5/8 in

Male SAE ORFS

1 in

1-14 x 1-14 x 7/8-14

FS6400-12-10-O

FS6400-12-10-O

3/4 in

Male SAE ORFS

5/8 in

1-3/16-12, 7/8-14

12MFS-12MAORB STRAIGHT

FS6400-12-12-O

3/4 in

Male SAE ORFS

3/4 in

1-3/16-16 x 1-1/16-12

12MFS-16MAORB STRAIGHT

FS6400-12-16-O

3/4 in

Male SAE ORFS

1 in

1-3/16-12 x 1-5/16-12

12MFS-20MAORB STRAIGHT

FS6400-12-20-O

3/4 in

Male SAE ORFS

1-1/4 in

1-3/16-12 x 1-5/8-12

FS6400-16-08-O

FS6400-16-08-O

1 in

Male SAE ORFS

1/2 in

1-7/16-12, 3/4-16

16MFS-12MAORB STRAIGHT

FS6400-16-12-O

1 in

Male SAE ORFS

3/4 in

1-7/16-12 x 1-1/16-12

16MFS-20MAORB STRAIGHT

FS6400-16-20-O

1 in

Male SAE ORFS

1-1/4 in

1-7/16-12, 1-5/8-12

16MFS-24MAORB STRAIGHT

FS6400-16-24-O

1 in

Male SAE ORFS

1-1/2 in

1-7/16-12 x 1-7/8-12

Steel Adapter, 1-11/16-12 Male SAE O-Ring Face Seal To 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FS6400-20-20-O Steel Male ORS To ORB Adapter

1-1/4 in

Male ORFS

1-1/4 in

1-11/16-12, 1-5/8-12

20MFS-24MAORB STRAIGHT

FS6400-20-24-O

1-1/4 in

Male SAE ORFS

1-1/2 in

1-11/16-12, 1-7/8-12

24MFS-20MAORB STRAIGHT

FS6400-24-20-O

1-1/2 in

Male SAE ORFS

1-1/4 in

2-12, 1-5/8-12

24MFS-24MAORB STRAIGHT

FS6400-24-24-O

1-1/2 in

Male SAE ORFS

1-1/2 in

2-12 x 1-7/8-12

Product Questions & Answers (2)

Question by: Dwayne H on Jan 24, 2026, 2:13 PM
Got a 1/2 inch tube line I'm trying to connect to a -10 ORB port, this the right piece for that?
Answer by: Customer Support on Jan 26, 2026, 6:14 AM
For a 1/2 inch tube O.D. on one end and a 7/8-14 thread on the other, yeah, that lines up with what this adapter is built for. The A side runs a 13/16-16 thread and the B side is 7/8-14, which is your standard -10 ORB. Both drill dimensions are 0.378, so flow passage is consistent end to end. Brennan part number FS6400-08-10-O, also listed as FF6400-08-10 if you're cross-referencing another catalog.
Question by: Wes W on Jun 7, 2025, 6:41 PM
trying to swap an adapter out, does this one match the FS6400-08-10-O part number?
Answer by: Customer Support on Jun 9, 2025, 6:45 AM
For a direct part number match, this adapter is the Brennan Industries FS6400-08-10-O (SKU FS6400-08-10-O). It also crosses to AFF1852T0810S and FF6400-08-10.
