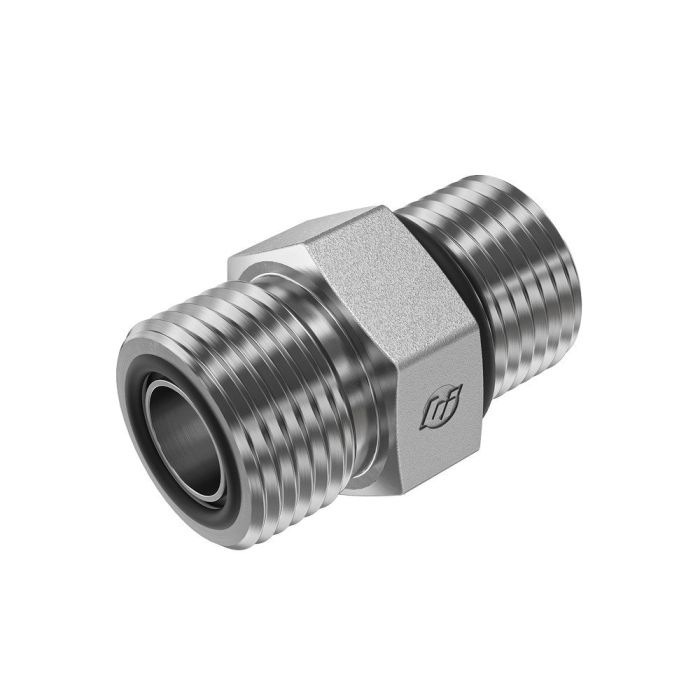

08MFS-16MAORB STRAIGHT

Ask A Question

Description & Features

The 08MFS-16MAORB STRAIGHT by Brennan Industries Inc. is designed for specialized industrial applications offering reliable performance with a 1/2" tube O.D. Precision engineered the product features a robust A Drill size of 0.378 and a B Drill size of 0.811 ensuring optimal compatibility with various setups.

The A Thread dimension is 13/16-16 while the B Thread is 1-5/16-12 offering a secure and stable connection in demanding environments.

Constructed with durable materials this adapter has an H Hex of 1.500 making it suitable for high-stress applications. The overall length of the adapter is 1.788 providing a compact yet efficient solution for your component needs.

Belonging to the FS6400-O series the 08MFS-16MORB Straight adapter integrates seamlessly into industry-specific systems and assemblies.

Supplier Part Number: FS6400-08-16-O

Specifications

Brand
BRENNAN
a Drill Dimensions
0.378 in
b Drill Dimensions
0.811 in
Connection Size 1
1/2 in
Connection Size 2
1 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1453, SAE J1926
Dimensions
1.788 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/2 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6400-O Series
Thread Size
13/16-16, 1-5/16-12
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Product Questions & Answers (3)

Question by: Scott P on Sep 26, 2025, 11:31 AM
trying to swap an old adapter out, is this the one with 13/16-16 on one end and 1-5/16-12 on the other?
Answer by: Customer Support on Sep 27, 2025, 7:58 PM
For a straight adapter with those thread sizes, this part matches. The A thread is 13/16-16 and the B thread is 1-5/16-12, both on the FS6400-O series 08MFS-16MAORB configuration.
Question by: Jimmy H on Jan 27, 2026, 7:26 PM
what's the tube O.D. on this fitting and does the hex size give you enough room to torque it down proper in a tight spot?
Answer by: Customer Support on Jan 29, 2026, 8:31 AM
Half-inch tube O.D. on this one. The hex comes in at 1.500 inches, so a standard 1-1/2 inch wrench fits it without any drama. Whether that gives you enough clearance depends on your setup, but that hex size is pretty workable in most install situations where space isn't extremely cramped.
Question by: Connie B on Mar 19, 2026, 2:53 PM
Hey, just wanna make sure this thing'll fit. The dimensions listed are for the whole thing, right?
Answer by: Customer Support on Mar 21, 2026, 8:37 AM
Yes sir, the listed dimensions, including the 1.788" overall length and the 1.500" H Hex, represent the complete adapter size. So you can count on those measurements for fit.
