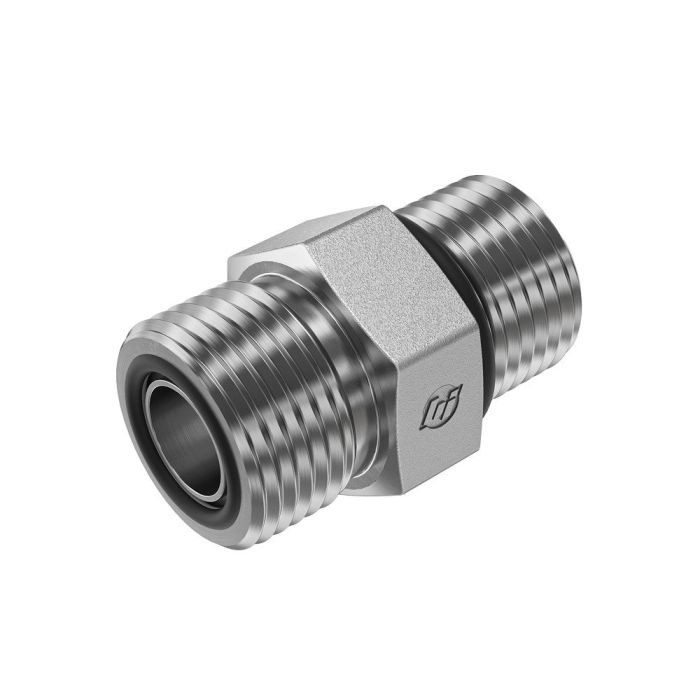

10MFS-12MAORB STRAIGHT

Description & Features

The 10MFS-12MAORB Straight adapter by Brennan Industries Inc ensures efficient fluid transfer in industrial applications. Engineered with a drill dimension of 0.484 inches for both A and B sides it facilitates a seamless connection. The threads measuring 1-14 for A and 1-1/16-12 for B contribute to its robustness.

Precision-crafted with a hex of 1.250 inches and a length of 1.858 inches this adapter provides reliable performance. The series FS6400-O guarantees compatibility with existing systems while accommodating a tube outside diameter of 5/8 inches.

MPN: {{ecc_mpn}}

Supplier Part Number: FS6400-10-12-O

Specifications

Brand BRENNAN	a Drill Dimensions 0.484 in	b Drill Dimensions 0.484 in	Connection Size 1 5/8 in	Connection Size 2 3/4 in	Connection Type Male ORFS, Male SAE ORB	Connection Type 1 Male SAE ORFS	Connection Type 2 Male SAE ORB	Dimension Standards SAE J1453, SAE J1926	Dimensions 1.858 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 1-1/4	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Series FS6400-O Series	Thread Size 1-14 x 1-1/16-12	Tube Outside Diameter 5/8 in

Product Questions & Answers (1)

Question by: Patty C on Apr 9, 2025, 10:06 AM

What size tube does this adapter hook up to, and what are the two thread types on each end?

Answer by: Customer Support on Apr 10, 2025, 6:03 PM

Connects to 5/8 inch outside diameter tubing. One end runs a 1-14 thread and the other is 1-1/16-12, so you've got a male flareless fitting on one side and a male O-ring boss on the other. The hex across the flats is 1.250 inches and the overall length comes in at 1.858 inches, which helps when you're figuring out clearance in a tight spot.
