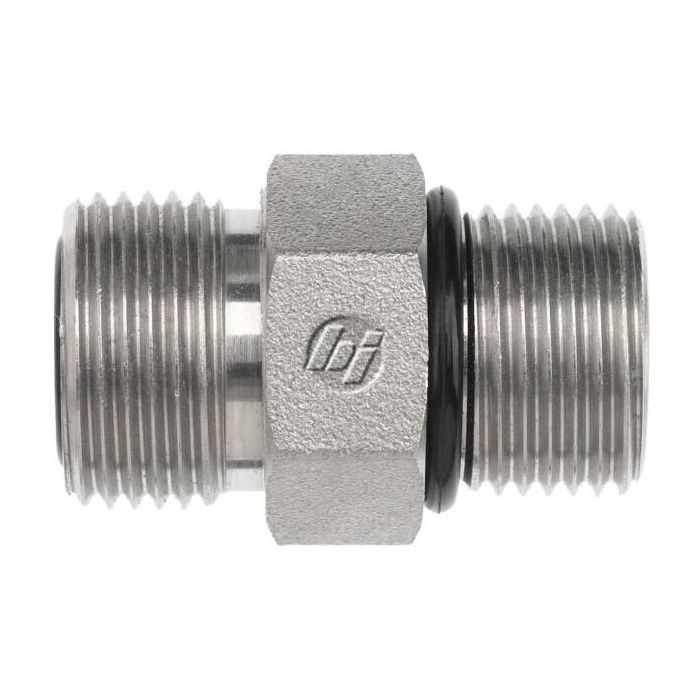

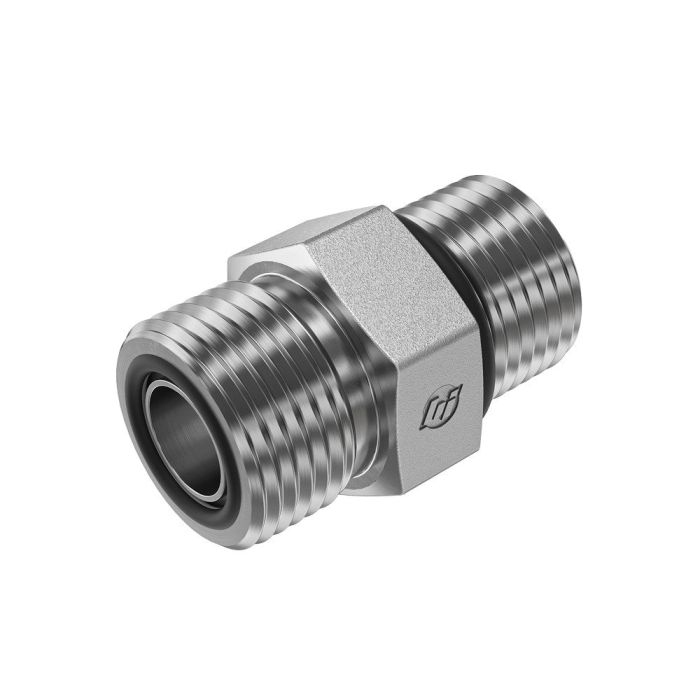

main product photo

12MFS-16MAORB STRAIGHT

Ask A Question

Description & Features

Designed for precise engineering applications the 12MFS-16MAORB STRAIGHT by Brennan Industries Inc delivers efficient performance in industrial settings. This straight fitting features a robust 1-3/16-12 and 1-5/16-12 thread configuration ensuring secure connections.

With an overall length of 1.958 inches and a hex size of 1.500 inches this component is ideal for a variety of industrial uses. Both ends support a drill size of 0.609 inches providing consistent performance across the board.

Offered under the FS6400-O series the 12MFS-16MORB Straight fitting has a tube outer diameter of 3/4 inches making it adaptable for numerous applications where precision and reliability are paramount.

MPN: FS6400-12-16-O

Specifications

Brand
BRENNAN
a Drill Dimensions
0.609 in
b Drill Dimensions
0.609 in
Connection Size 1
3/4 in
Connection Size 2
1 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1453, SAE J1926
Dimensions
1.958 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/2 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6400-O Series
Thread Size
1-3/16-12 x 1-5/16-12
Tube Outside Diameter
3/4 in

Product Questions & Answers (2)

Question by: Janice M on Sep 11, 2025, 6:36 AM
What size drill bit does this fitting take?
Answer by: Customer Support on Sep 13, 2025, 6:31 AM
The fitting uses a 0.609 inch drill size on both ends, which helps ensure consistent performance across different setups.
Question by: Brett B on Mar 13, 2026, 11:26 AM
what's the tube OD on this fitting, and will it work with 3/4 inch tubing in a hydraulic line?
Answer by: Customer Support on Mar 15, 2026, 10:08 AM
the tube outer diameter on this one is 3/4 inch, so it's built to connect directly into a 3/4 inch tube line. The A-side thread is 1-3/16-12 and the B-side runs 1-5/16-12, which is your standard male O-ring boss configuration on that end. Both drill sizes come in at 0.609 inches across both ports, so flow passage stays consistent end to end. Overall length is 1.958 inches with a 1.500 inch hex for wrenching, which gives you solid purchase when torquing it down into place.
