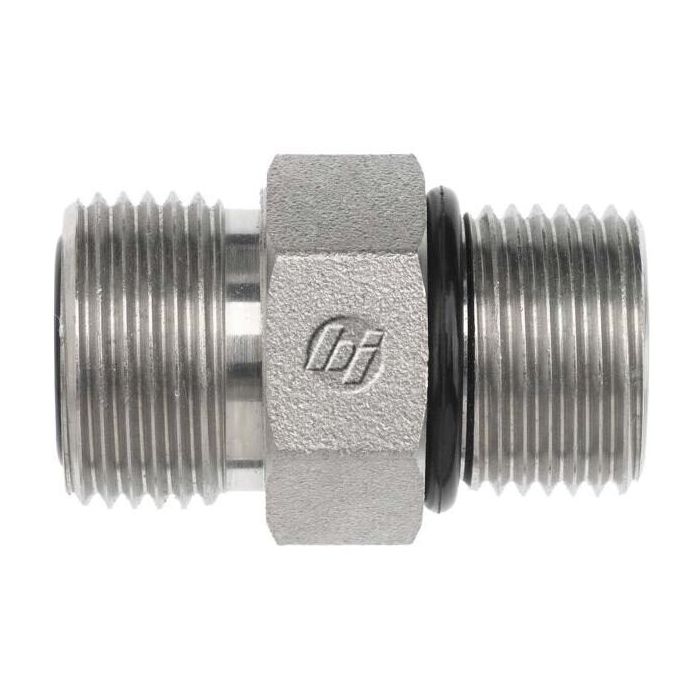

16MFS-12MAORB STRAIGHT

Description & Features

The 16MFS-12MAORB STRAIGHT is a robust component from Brennan Industries Inc. designed for reliable industrial performance. Engineered with precision it features a 0.811 A drill size and a 1-7/16-12 A thread ensuring a secure fit and optimal functionality.

This versatile piece also includes a B drill of 0.609 and a B thread of 1-1/16-12 making it suitable for various technical applications. Its 1.500 hex size allows for easy installation and maintenance while the durable material construction assures lasting utility.

The component falls under the FS6400-O series and includes a tube outer diameter of 1 inch offering compatibility with numerous configurations. Measuring 2.138 inches in length it is designed for precision and reliability in demanding environments.

Supplier Part Number: FS6400-16-12-O

Specifications

Brand BRENNAN	a Drill Dimensions 0.811 in	b Drill Dimensions 0.609 in	Connection Size 1 1 in	Connection Size 2 3/4 in	Connection Type Male ORFS, Male SAE ORB	Connection Type 1 Male SAE ORFS	Connection Type 2 Male SAE ORB	Dimension Standards SAE J1453, SAE J1926	Dimensions 2.138 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 1-1/2 in	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Series FS6400-O Series	Thread Size 1-7/16-12 x 1-1/16-12	Tube Outside Diameter 1 in

Similar Products

Model Number	Connection Size 1	Connection Type 1	Connection Size 2	Thread Size
FF6400-06-05	3/8 in	Male SAE ORFS	5/16 in	11/16-16 x 1/2-20
FF6400-06-10	3/8 in	Male SAE ORFS	5/8 in	11/16-16, 7/8-14
FF6400-10-10	5/8 in	Male SAE ORFS	5/8 in	1-14 x 1-14 x 7/8-14
FF6400-12-08	3/4 in	Male SAE ORFS	1/2 in	1-3/16-12, 3/4-16
FS6400-04-04-O	1/4 in	Male SAE ORFS	1/4 in	9/16-18, 7/16-20
FS6400-04-06-O	1/4 in	Male SAE ORFS	3/8 in	9/16-18
FS6400-04-08-O	1/4 in	Male SAE ORFS	1/2 in	3/4-16, 9/16-18
FS6400-04-10-O	1/4 in	Male SAE ORFS	5/8 in	7/8-14 x 9/16-18
FS6400-04-12-O	1/4 in	Male SAE ORFS	3/4 in	1-1/16-12 x 9/16-18
FS6400-06-04-O	3/8 in	Male SAE ORFS	1/4 in	11/16-16 x 7/16-20
FS6400-06-06-O	3/8 in	Male SAE ORFS	3/8 in	11/16-16, 9/16-18
FS6400-06-08-O	3/8 in	Male SAE ORFS	1/2 in	11/16-16 x 3/4-16
FS6400-08-06-O	1/2 in	Male SAE ORFS	3/8 in	13/16-16 x 9/16-18 x 13/16-16
FS6400-08-08-O	1/2 in	Male SAE ORFS	1/2 in	13/16-16 x 3/4-16
FS6400-08-10-O	1/2 in	Male SAE ORFS	5/8 in	13/16-16 x 7/8-14
FS6400-08-16-O	1/2 in	Male SAE ORFS	1 in	13/16-16, 1-5/16-12
FS6400-10-12-O	5/8 in	Male SAE ORFS	3/4 in	1-14 x 1-1/16-12
FS6400-10-16-O	5/8 in	Male SAE ORFS	1 in	1-14 x 1-14 x 7/8-14
FS6400-12-10-O	3/4 in	Male SAE ORFS	5/8 in	1-3/16-12, 7/8-14
FS6400-12-12-O	3/4 in	Male SAE ORFS	3/4 in	1-3/16-16 x 1-1/16-12
FS6400-12-16-O	3/4 in	Male SAE ORFS	1 in	1-3/16-12 x 1-5/16-12
FS6400-12-20-O	3/4 in	Male SAE ORFS	1-1/4 in	1-3/16-12 x 1-5/8-12
FS6400-16-08-O	1 in	Male SAE ORFS	1/2 in	1-7/16-12, 3/4-16
FS6400-16-20-O	1 in	Male SAE ORFS	1-1/4 in	1-7/16-12, 1-5/8-12
FS6400-16-24-O	1 in	Male SAE ORFS	1-1/2 in	1-7/16-12 x 1-7/8-12
FS6400-20-20-O Steel Male ORS To ORB Adapter	1-1/4 in	Male ORFS	1-1/4 in	1-11/16-12, 1-5/8-12
FS6400-20-24-O	1-1/4 in	Male SAE ORFS	1-1/2 in	1-11/16-12, 1-7/8-12
FS6400-24-20-O	1-1/2 in	Male SAE ORFS	1-1/4 in	2-12, 1-5/8-12
FS6400-24-24-O	1-1/2 in	Male SAE ORFS	1-1/2 in	2-12 x 1-7/8-12

Product Questions & Answers (2)

Question by: Steve P on Feb 9, 2026, 6:33 AM

trying to match up a straight fitting i pulled off, what thread sizes does this one have on the A and B ends?

Answer by: Customer Support on Feb 10, 2026, 7:28 PM

On the A end it has a 1-7/16-12 thread with a 0.811 drill size. The B end is 1-1/16-12 thread with a 0.609 drill size.

Question by: Darryl S on Sep 27, 2025, 5:48 PM

part number FS6400-16-12-O, does that cross over to FF6400-16-12 or is that a whole different animal?

Answer by: Customer Support on Sep 29, 2025, 7:15 AM

Same part, different number. FF6400-16-12 and FF6400-16-12-O both cross to FS6400-16-12-O, and AFF1852T1612S is another alternate that references the same fitting. You can order under any of those numbers and you're getting the same Brennan FS6400-O series straight adapter.
